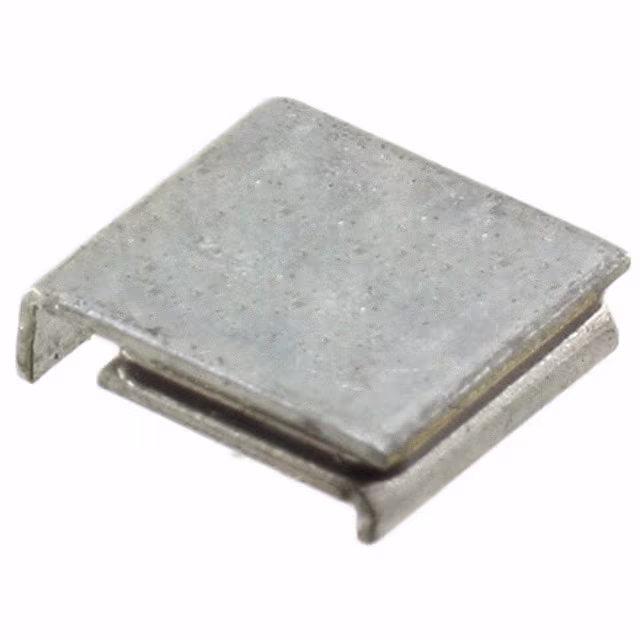

Littelfuse Inc. SMD150F/33-2

Product attributes

Attribute value

Manufacturer:

Littelfuse Inc.

Package/Case:

2-SMD

Series:

PolySwitch®, SMD

Packaging:

Tape & Reel (TR)

Product Status:

Active

Type:

Polymeric

Voltage - Max:

33V

Current - Hold (Ih) (Max):

1.5 A

Current - Trip (It):

3 A

Current - Max:

40 A

Time to Trip:

5 s

Resistance - Initial (Ri) (Min):

80 mOhms

Resistance - Post Trip (R1) (Max):

230 mOhms

Resistance - 25°C (Typ):

-

Operating Temperature:

-40°C ~ 85°C

Grade:

-

Qualification:

-

Ratings:

-

Mounting Type:

Surface Mount

Size / Dimension:

0.343" L x 0.250" W (8.70mm x 6.36mm)

Height - Seated (Max):

-

Thickness (Max):

0.118" (3.00mm)

Lead Spacing:

-
