Microchip Technology SAM9X60-V/DWB
- Part No.:
- SAM9X60-V/DWB
- Manufacturer:
- Microchip Technology
- Category:
- Microprocessors
- Package:
- 228-TFBGA
- Datasheet:
-
SAM9X60-V/DWB.pdf
- Description:
- IC MPU SAM9X60 600MHZ 228TFBGA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SAM9X60-V/DWB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- 228-TFBGA
- Series:
- SAM9X60
- Packaging:
- Tray
- Product Status:
- Active
- Core Processor:
- ARM926EJ-S
- Number of Cores/Bus Width:
- 1 Core, 32-Bit
- Speed:
- 600MHz
- Co-Processors/DSP:
- -
- RAM Controllers:
- LPDDR, LPSDR, DDR2, SDR, SRAM
- Graphics Acceleration:
- Yes
- Display & Interface Controllers:
- Keyboard, LCD, Touchscreen
- Ethernet:
- 10/100Mbps (2)
- SATA:
- -
- USB:
- USB 2.0 (3)
- Voltage - I/O:
- 3.3V
- Operating Temperature:
- -40°C ~ 105°C (TA)
- Grade:
- -
- Qualification:
- -
- Security Features:
- Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 228-TFBGA (11x11)
- Additional Interfaces:
- -
| Image |  |
 |
|
|
 |

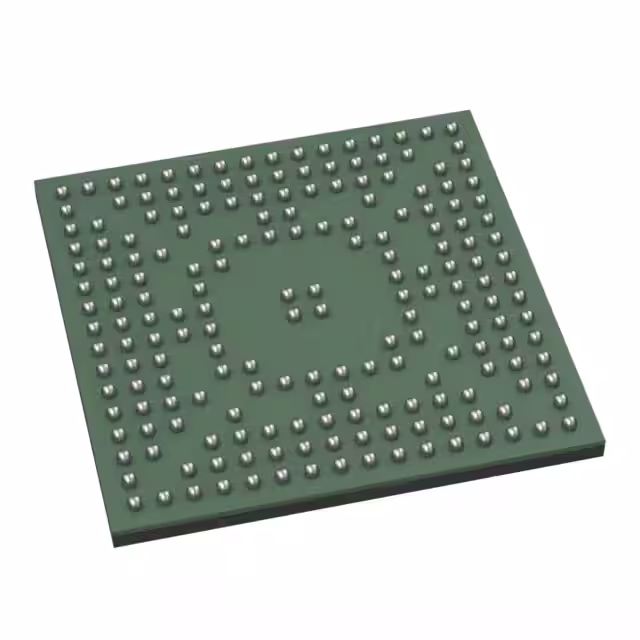

| Part Number | SAM9X60D1G-I/4FB | SAM9X60-V/DWB | SAM9X60D5M-I/4FB | SAM9X60T-V/DWB | SAM9X60D6K-I/4GB |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Package/Case | 233-TFBGA | 228-TFBGA | 233-TFBGA | 228-TFBGA | 196-TFBGA |
| Series | SAM9X60 | SAM9X60 | SAM9X60 | SAM9X60 | SAM9X |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR) | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM926EJ-S | ARM926EJ-S | ARM926EJ-S | ARM926EJ-S | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 600MHz | 600MHz | 600MHz | 600MHz | 600MHz |
| Co-Processors/DSP | - | - | - | - | - |
| RAM Controllers | LPDDR, LPSDR, DDR2, SDR, SRAM | LPDDR, LPSDR, DDR2, SDR, SRAM | LPDDR, LPSDR, DDR2, SDR, SRAM | LPDDR, LPSDR, DDR2, SDR, SRAM | SDR, LPDDR, LPSDR, SRAM |
| Graphics Acceleration | Yes | Yes | Yes | Yes | Yes |
| Display & Interface Controllers | Keyboard, LCD, Touchscreen | Keyboard, LCD, Touchscreen | Keyboard, LCD, Touchscreen | Keyboard, LCD, Touchscreen | Keyboard, LCD, Touchscreen |
| Ethernet | 10/100Mbps (2) | 10/100Mbps (2) | 10/100Mbps (2) | 10/100Mbps (2) | 10/100Mbps (2) |
| SATA | - | - | - | - | - |
| USB | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (3) | USB 2.0 (5) |
| Voltage - I/O | 3.3V | 3.3V | 3.3V | 3.3V | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Security Features | Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins | Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins | Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins | Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins | Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 233-TFBGA (14x14) | 228-TFBGA (11x11) | 233-TFBGA (14x14) | 228-TFBGA (11x11) | 196-TFBGA (11x11) |
| Additional Interfaces | - | - | - | - | CAN, EBI/EMI, I2C, MMC/SD/SDIO, SPI, SSC, UART/USART |
