Riedon products by Bourns RSN-300-100B
- Part No.:
- RSN-300-100B
- Manufacturer:
- Riedon products by Bourns
- Category:
- Chassis Mount Resistors
- Package:
- Rectangular Case
- Datasheet:
-
RSN-300-100B.pdf
- Description:
- RES CHAS MNT 333 UOHM 30W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RSN-300-100B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Riedon products by Bourns
- Series:
- RSN
- Package/Case:
- Rectangular Case
- Packaging:
- Bulk
- Product Status:
- Active
- Resistance:
- 333 µOhms
- Tolerance:
- ±0.1%
- Power (Watts):
- 30W
- Composition:
- Metal Element
- Temperature Coefficient:
- ±15ppm/°C
- Operating Temperature:
- 30°C ~ 70°C
- Features:
- Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety
- Coating, Housing Type:
- -
- Mounting Feature:
- Flanges
- Size / Dimension:
- 6.000" L x 1.250" W (152.40mm x 31.75mm)
- Height - Seated (Max):
- 1.380" (35.05mm)
- Lead Style:
- -
- Failure Rate:
- -
- Grade:
- -
- Qualification:
- -

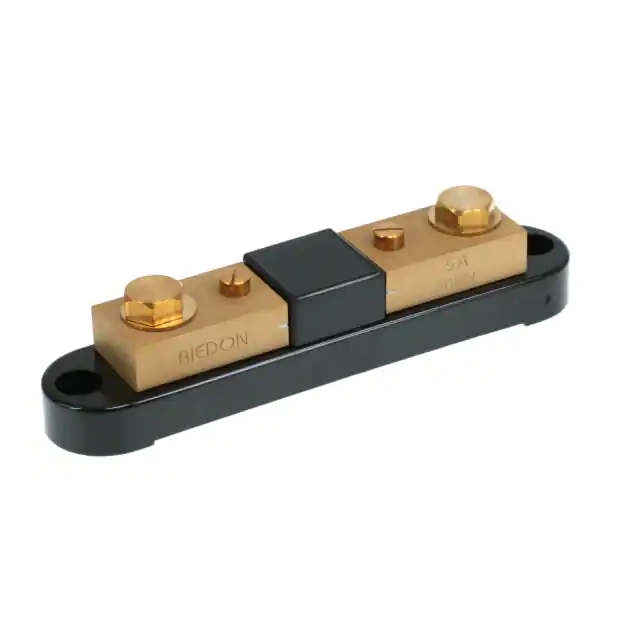

| Image |  |
 |
 |
|
 |
| Part Number | RSN-100-100B | RSN-400-100B | RSN-300-100B | RSN-50-50B | RSN-5-50B |
| Manufacturer | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns |
| Series | RSN | RSN | RSN | RSN | RSN |
| Package/Case | Rectangular Case | Rectangular Case | Rectangular Case | Rectangular Case | Rectangular Case |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 1 mOhms | 250 µOhms | 333 µOhms | 1 mOhms | 10 mOhms |
| Tolerance | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Power (Watts) | 10W | 40W | 30W | 2.5W | 0.25W, 1/4W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Temperature Coefficient | ±15ppm/°C | ±15ppm/°C | ±15ppm/°C | ±15ppm/°C | ±15ppm/°C |
| Operating Temperature | 30°C ~ 70°C | 30°C ~ 70°C | 30°C ~ 70°C | 30°C ~ 70°C | 30°C ~ 70°C |
| Features | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety |
| Coating, Housing Type | - | - | - | - | - |
| Mounting Feature | Flanges | Flanges | Flanges | Flanges | Flanges |
| Size / Dimension | 6.000" L x 1.250" W (152.40mm x 31.75mm) | 6.000" L x 1.250" W (152.40mm x 31.75mm) | 6.000" L x 1.250" W (152.40mm x 31.75mm) | 6.000" L x 1.250" W (152.40mm x 31.75mm) | 6.000" L x 1.250" W (152.40mm x 31.75mm) |
| Height - Seated (Max) | 1.380" (35.05mm) | 1.380" (35.05mm) | 1.380" (35.05mm) | 1.380" (35.05mm) | 1.380" (35.05mm) |
| Lead Style | - | - | - | - | - |
| Failure Rate | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
