IDEC RR3P-UAC100V
- Part No.:
- RR3P-UAC100V
- Manufacturer:
- IDEC
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY PLUG-IN 3PDT 10A 100VAC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RR3P-UAC100V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IDEC
- Series:
- *
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- -
- Coil Voltage:
- -
- Contact Form:
- -
- Contact Rating (Current):
- -
- Switching Voltage:
- -
- Load - Max Switching:
- -
- Coil Current:
- -
- Coil Type:
- -
- Features:
- -
- Termination Style:
- -
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- -
- Must Release Voltage:
- -
- Operate Time:
- -
- Release Time:
- -
- Operating Temperature:
- -
- Contact Material:
- -
- Relay Type:
- -
- Grade:
- -
- Qualification:
- -

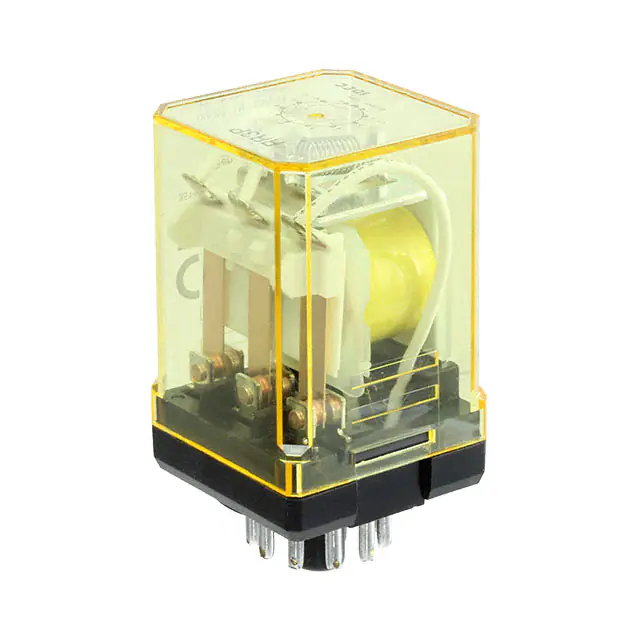

| Image |  |
|
|
|
|
| Part Number | RR3PA-UAC120V | RR3PA-ULAC120V | RR3PA-ULAC50V | RR3PA-ULAC6V | RR3PA-UDC48V |
| Manufacturer | IDEC | IDEC | IDEC | IDEC | IDEC |
| Series | RR | RR | RR | RR | RR |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | Socketable |
| Coil Voltage | 120VAC | 120VAC | 50VAC | 6VAC | 48VDC |
| Contact Form | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A | 10 A | 10 A | 10 A | 10 A |
| Switching Voltage | 240VAC, 30VDC - Max | 240VAC, 30VDC - Max | 240VAC, 30VDC - Max | 240VAC, 30VDC - Max | 240VAC, 30VDC - Max |
| Load - Max Switching | 2400VA, 300W | 2400VA, 300W | 2400VA, 300W | 2400VA, 300W | 2400VA, 300W |
| Coil Current | 20.5 mA | 20.5 mA | 50 mA | 420 mA | 30 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | Lighted Indicator | Lighted Indicator | Lighted Indicator | - |
| Termination Style | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal) |
| Seal Rating | - | - | - | - | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 96 VAC | 96 VAC | 40 VAC | 4.8 VAC | 38.4 VDC |
| Must Release Voltage | 36 VAC | 36 VAC | 15 VAC | 1.8 VAC | 4.8 VDC |
| Operate Time | 25 ms | 25 ms | 25 ms | 25 ms | 25 ms |
| Release Time | 25 ms | 25 ms | 25 ms | 25 ms | 25 ms |
| Operating Temperature | -25°C ~ 40°C | -25°C ~ 40°C | -25°C ~ 40°C | -25°C ~ 40°C | -25°C ~ 40°C |
| Contact Material | Silver (Ag) | Silver (Ag) | Silver (Ag) | Silver (Ag) | Silver (Ag) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
