Microchip Technology RN4870-V/RM140
- Part No.:
- RN4870-V/RM140
- Manufacturer:
- Microchip Technology
- Category:
- RF Transceiver Modules and Modems
- Package:
- 33-SMD Module
- Datasheet:
-
RN4870-V/RM140.pdf
- Description:
- RF TXRX MOD BLUETOOTH CHIP SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RN4870-V/RM140 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- -
- Package/Case:
- 33-SMD Module
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v5.0
- Modulation:
- GFSK
- Frequency:
- 2.402GHz ~ 2.48GHz
- Data Rate:
- 10kbps
- Power - Output:
- 0dBm
- Sensitivity:
- -90dBm
- Serial Interfaces:
- I2C, AIO, PIO, PWM, SPI, UART
- Antenna Type:
- Integrated, Chip
- Utilized IC / Part:
- RN4870
- Memory Size:
- -
- Voltage - Supply:
- 1.9V ~ 3.6V
- Current - Receiving:
- 13mA
- Current - Transmitting:
- 13mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -20°C ~ 70°C
| Image |  |
|
 |
 |
 |

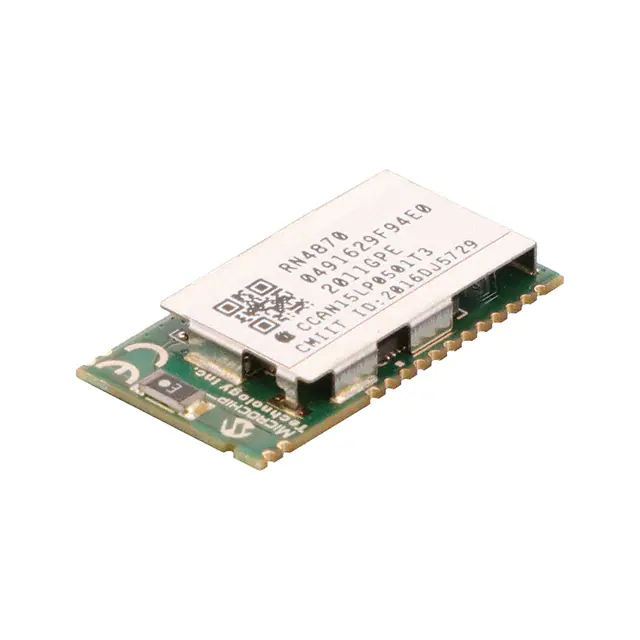

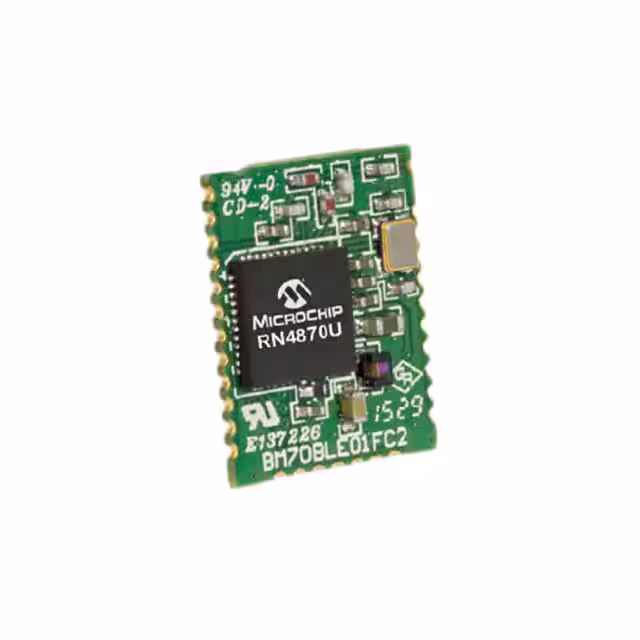

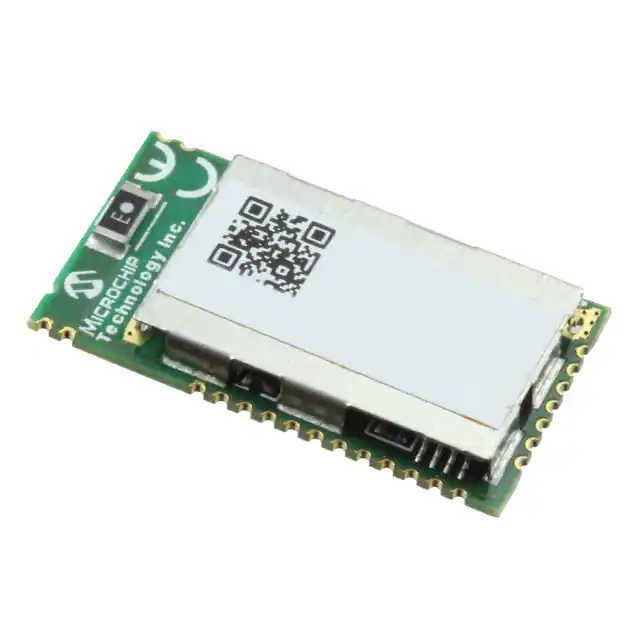

| Part Number | RN4870-V/RM140 | RN4870-I/RM140 | RN4870-I/RM130 | RN4870U-V/RM118 | RN4870-I/RM128 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | - | - | - | - | - |
| Package/Case | 33-SMD Module | 33-SMD Module | 33-SMD Module | 30-SMD Module | Module |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | GFSK | GFSK | GFSK | GFSK | GFSK |
| Frequency | 2.402GHz ~ 2.48GHz | 2.402GHz ~ 2.48GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 10kbps | 10kbps | 10kbps | - | 10kbps |
| Power - Output | 0dBm | 0dBm | 0dBm | 0dBm | 0dBm |
| Sensitivity | -90dBm | -90dBm | -90dBm | -90dBm | -90dBm |
| Serial Interfaces | I2C, AIO, PIO, PWM, SPI, UART | I2C, AIO, PIO, PWM, SPI, UART | I2C, AIO, PIO, PWM, SPI, UART | UART | UART |
| Antenna Type | Integrated, Chip | Integrated, Chip | Integrated, Chip | Antenna Not Included | Integrated, Chip |
| Utilized IC / Part | RN4870 | RN4870 | RN4870 | - | - |
| Memory Size | - | - | 256kB Flash, 32kB ROM, 24kB SRAM | - | - |
| Voltage - Supply | 1.9V ~ 3.6V | 1.9V ~ 3.6V | 1.9V ~ 3.6V | 1.9V ~ 3.6V | 3.3V |
| Current - Receiving | 13mA | 13mA | 13mA | 13mA | 10mA ~ 13mA |
| Current - Transmitting | 13mA | 13mA | 13mA | 13mA | 13mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -20°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 85°C |
