Microchip Technology RN42N-I/RM
- Part No.:
- RN42N-I/RM
- Manufacturer:
- Microchip Technology
- Category:
- RF Transceiver Modules and Modems
- Package:
- 24-SMD Module
- Datasheet:
-
RN42N-I/RM.pdf
- Description:
- RF TXRX MOD BLUETOOTHU.FL SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RN42N-I/RM Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- -
- Package/Case:
- 24-SMD Module
- Packaging:
- Tray
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v2.1 +EDR, Class 2
- Modulation:
- -
- Frequency:
- 2.4GHz
- Data Rate:
- 300kbps
- Power - Output:
- 4dBm
- Sensitivity:
- -80dBm
- Serial Interfaces:
- UART
- Antenna Type:
- Antenna Not Included, U.FL
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 3V ~ 3.6V
- Current - Receiving:
- -
- Current - Transmitting:
- 30mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
 |
 |
|

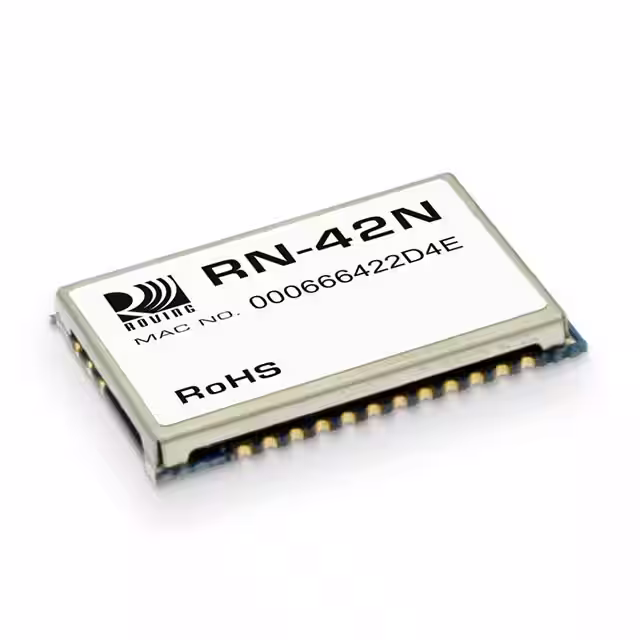

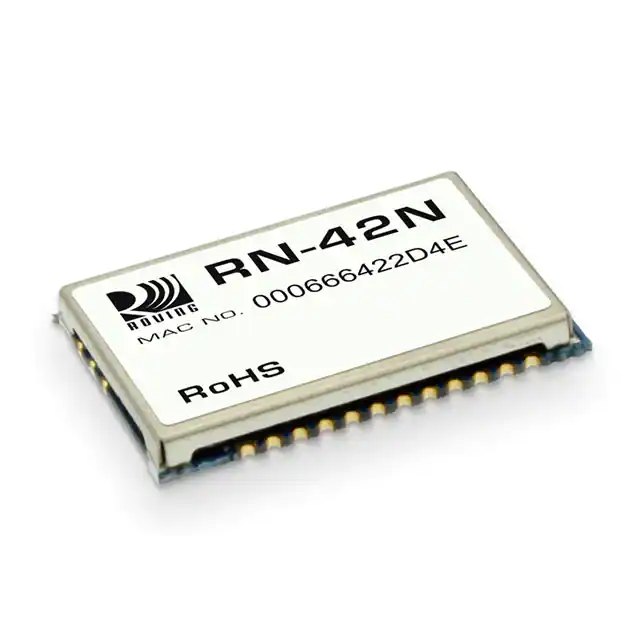

| Part Number | RN42N-I/RM | RN42NHCI-I/RM | RN42NHID-I/RM | RN42NU-I/RM | RN42NAPL-I/RM |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | - | - | - | - | RN42 |
| Package/Case | 24-SMD Module | Module | Module | Module | 35-SMD Module |
| Packaging | Tray | Tray | Tray | Tray | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v2.1 +EDR, Class 2 | Bluetooth v2.1 + EDR, Class 2 |
| Modulation | - | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 300kbps | 300kbps | 300kbps | 3Mbps | 3Mbps |
| Power - Output | 4dBm | 4dBm | 4dBm | 4dBm | 4dBm |
| Sensitivity | -80dBm | -80dBm | -80dBm | -80dBm | -86dBm |
| Serial Interfaces | UART | UART | UART | USB | SPI, UART |
| Antenna Type | Antenna Not Included, U.FL | Antenna Not Included, U.FL | Antenna Not Included, U.FL | Antenna Not Included, U.FL | PCB Trace |
| Utilized IC / Part | - | - | - | - | - |
| Memory Size | - | - | - | - | - |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | 30mA | 30mA | 30mA | 30mA | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
