Panasonic Electric Works RK1-L2-12V
- Part No.:
- RK1-L2-12V
- Manufacturer:
- Panasonic Electric Works
- Category:
- High Frequency (RF) Relays
- Package:
- Datasheet:
-
RK1-L2-12V.pdf
- Description:
- RELAY RF SPDT 10MA 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RK1-L2-12V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- RK
- Packaging:
- Tube
- Product Status:
- Obsolete
- Coil Type:
- Latching, Dual Coil
- Coil Current:
- 33.3 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 10 mA
- Switching Voltage:
- 30VDC - Max
- Must Operate Voltage:
- 9 VDC
- Must Release Voltage:
- -
- Operate Time:
- 10 ms
- Release Time:
- 6 ms
- Features:
- Sealed - Fully
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 70°C

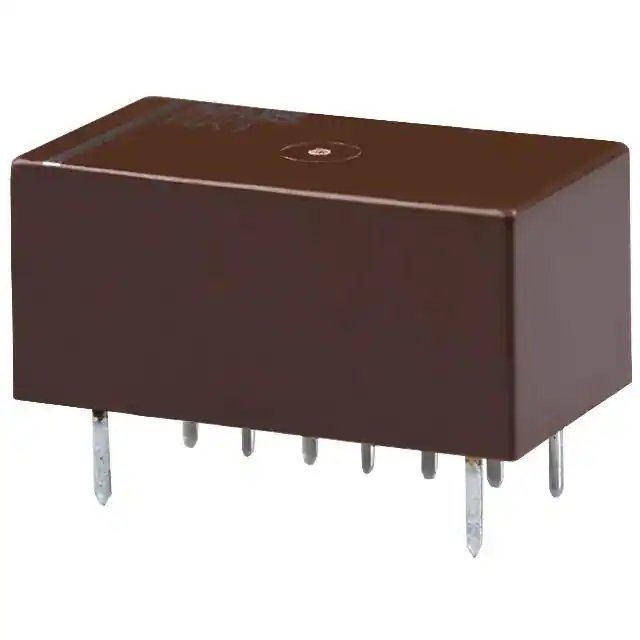

| Image |  |
|
|
 |
| Part Number | RK1-5V | RK1-12V | RK1-24V | RK1-L2-12V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | RK | RK | RK | RK |
| Packaging | Tube | Tube | Tube | Tube |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Coil Type | Non Latching | Non Latching | Non Latching | Latching, Dual Coil |
| Coil Current | 40 mA | 16.7 mA | 8.3 mA | 33.3 mA |
| Coil Voltage | 5VDC | 12VDC | 24VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 10 mA | 10 mA | 10 mA | 10 mA |
| Switching Voltage | 30VDC - Max | 30VDC - Max | 30VDC - Max | 30VDC - Max |
| Must Operate Voltage | 3.75 VDC | 9 VDC | 18 VDC | 9 VDC |
| Must Release Voltage | 0.5 VDC | 1.2 VDC | 2.4 VDC | - |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms |
| Release Time | 6 ms | 6 ms | 6 ms | 6 ms |
| Features | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
