IDEC RJ1V-CH-D6
- Part No.:
- RJ1V-CH-D6
- Manufacturer:
- IDEC
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RJ1V-CH-D6 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IDEC
- Series:
- RJ
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Mounting Type:
- Through Hole
- Coil Voltage:
- 6VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 16 A
- Switching Voltage:
- 250VAC, 125VDC - Max
- Load - Max Switching:
- 480W
- Coil Current:
- 88.3 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Flux Protection
- Coil Insulation:
- -
- Must Operate Voltage:
- 4.2 VDC
- Must Release Voltage:
- 0.6 VDC
- Operate Time:
- 15 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -40°C ~ 70°C
- Contact Material:
- Silver Tin Indium (AgSnIn)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

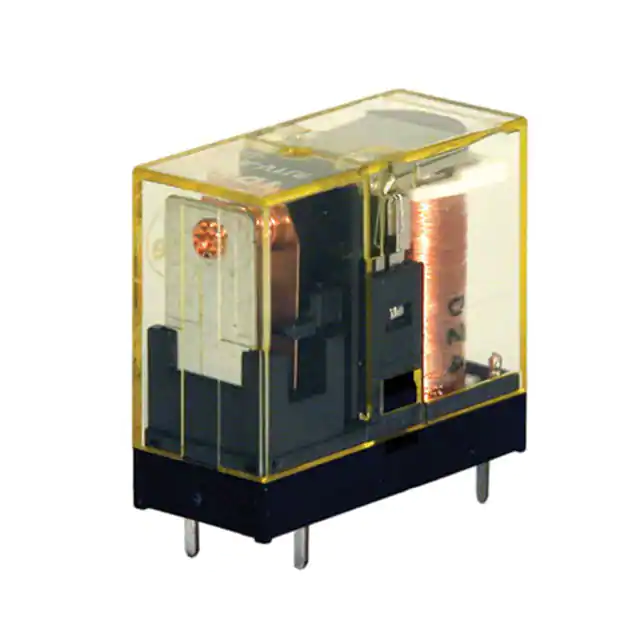

| Image |  |
|
 |
|
|
| Part Number | RJ1V-A-D24 | RJ1V-A-A120 | RJ1V-C-D24 | RJ1V-C-D6 | RJ1V-A-D6 |
| Manufacturer | IDEC | IDEC | IDEC | IDEC | IDEC |
| Series | RJ | RJ | RJ | RJ | RJ |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 24VDC | 120VAC | 24VDC | 6VDC | 6VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPDT (1 Form C) | SPDT (1 Form C) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 12 A | 12 A | 12 A | 12 A | 12 A |
| Switching Voltage | 250VAC - Nom | 250VAC - Nom | 250VAC, 125VDC - Nom | 250VAC, 125VDC - Nom | 250VAC, 125VDC - Nom |
| Load - Max Switching | - | - | - | - | - |
| Coil Current | 22.1 mA | 7.5 mA | 22.1 mA | 88.3 mA | 88.3 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | - | - | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 16.8 VDC | 96 VAC | 16.8 VDC | 4.2 VDC | 4.2 VDC |
| Must Release Voltage | 2.4 VDC | 36 VAC | 2.4 VDC | 0.6 VDC | 0.6 VDC |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) | Silver Nickel (AgNi) | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
