IDEC RH3B-DC125V
- Part No.:
- RH3B-DC125V
- Manufacturer:
- IDEC
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- 3PDT BLADE RELAY
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RH3B-DC125V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IDEC
- Series:
- *
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- -
- Coil Voltage:
- -
- Contact Form:
- -
- Contact Rating (Current):
- -
- Switching Voltage:
- -
- Load - Max Switching:
- -
- Coil Current:
- -
- Coil Type:
- -
- Features:
- -
- Termination Style:
- -
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- -
- Must Release Voltage:
- -
- Operate Time:
- -
- Release Time:
- -
- Operating Temperature:
- -
- Contact Material:
- -
- Relay Type:
- -
- Grade:
- -
- Qualification:
- -

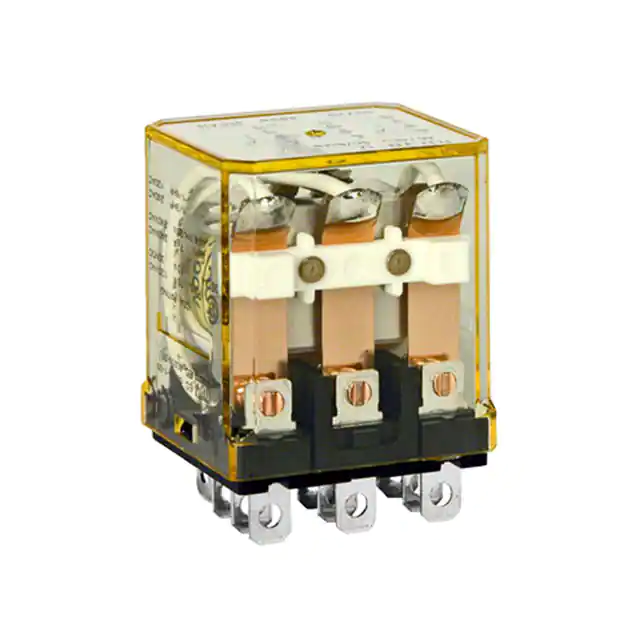

| Image |  |
|
|
|
|
| Part Number | RH3B-ULAC24V | RH3B-UDC24V | RH3B-UAC120V | RH3B-ULDC24V | RH3B-ULAC120V |
| Manufacturer | IDEC | IDEC | IDEC | IDEC | IDEC |
| Series | RH | RH | RH | RH | RH |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | Socketable |
| Coil Voltage | 24VAC | 24VDC | 120VAC | 24VDC | 120VAC |
| Contact Form | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A | 10 A | 10 A | 10 A | 10 A |
| Switching Voltage | 120VAC, 30VDC - Max | 120VAC, 30VDC - Max | 120VAC, 30VDC - Max | 120VAC, 30VDC - Max | 120VAC, 30VDC - Max |
| Load - Max Switching | 1200VA, 300W | 1200VA, 300W | 1200VA, 300W | 1200VA, 300W | 1200VA, 300W |
| Coil Current | 70 mA | 60 mA | 14.2 mA | 60 mA | 14.2 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | Lighted Indicator | - | - | Lighted Indicator | Lighted Indicator |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - | - | - | - | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 19.2 VAC | 19.2 VDC | 96 VAC | 19.2 VDC | 96 VAC |
| Must Release Voltage | 7.2 VAC | 2.4 VDC | 36 VAC | 2.4 VDC | 36 VAC |
| Operate Time | 25 ms | 25 ms | 25 ms | 25 ms | 25 ms |
| Release Time | 25 ms | 25 ms | 25 ms | 25 ms | 25 ms |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
