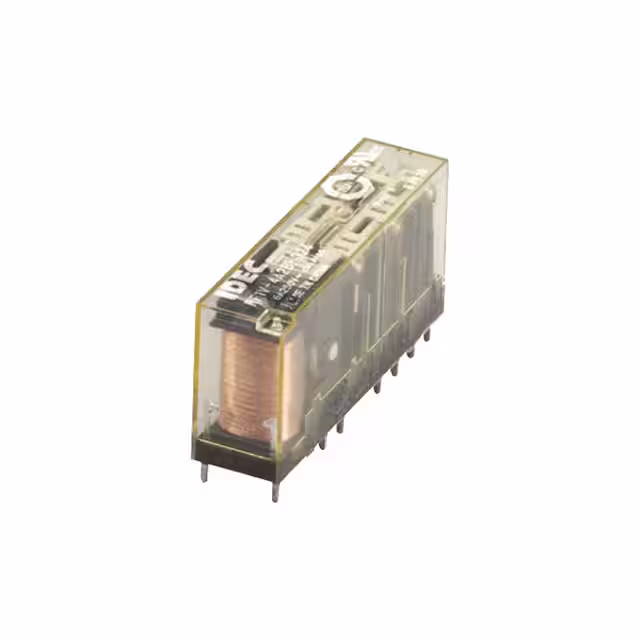

IDEC RF1V-5A1BLD1-D24
- Part No.:
- RF1V-5A1BLD1-D24
- Manufacturer:
- IDEC
- Category:
- Safety Relays
- Package:
- Datasheet:
-
RF1V-5A1BLD1-D24.pdf
- Description:
- RELAY GEN PURPOSE 6PST 6A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RF1V-5A1BLD1-D24 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IDEC
- Series:
- RF1V
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 24VDC
- Contact Form:
- 6PST-5NO/1NC (5 Form A, 1 Form B)
- Contact Rating (Current):
- 6 A
- Switching Voltage:
- 250VAC, 30VDC - Max
- Features:
- Diode, Lighted Indicator
- Termination Style:
- PC Pin
- Must Operate Voltage:
- 18 VDC
- Must Release Voltage:
- 2.4 VDC
- Operating Temperature:
- 20 ms
- Contact Material:
- 20 ms
- Operate Time:
- -40°C ~ 85°C
- Release Time:
- Silver Tin Oxide (AgSnO)
| Image | -D2xx.jpg) |
|
 |
|
|
| Part Number | RF1V-5A1BL-D24 | RF1V-5A1BLD1-D24 | RF1V-5A1B-D24 | RF1V-3A3BLD1-D24 | RF1V-2A2BL-D24 |
| Manufacturer | IDEC | IDEC | IDEC | IDEC | IDEC |
| Series | RF1V | RF1V | RF1V | RF1V | RF1V |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC |
| Contact Form | 6PST-5NO/1NC (5 Form A, 1 Form B) | 6PST-5NO/1NC (5 Form A, 1 Form B) | 6PST-5NO/1NC (5 Form A, 1 Form B) | 6PST-3NO/3NC (3 Form A, 3 Form B) | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Rating (Current) | 6 A | 6 A | 6 A | 6 A | 6 A |
| Switching Voltage | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max |
| Features | Lighted Indicator | Diode, Lighted Indicator | - | Diode, Lighted Indicator | Lighted Indicator |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Must Operate Voltage | 18 VDC | 18 VDC | 18 VDC | 18 VDC | 18 VDC |
| Must Release Voltage | 2.4 VDC | 2.4 VDC | 2.4 VDC | 2.4 VDC | 2.4 VDC |
| Operating Temperature | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms |
| Contact Material | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms |
| Operate Time | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Release Time | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
