Power Integrations RDK-648
- Part No.:
- RDK-648
- Manufacturer:
- Power Integrations
- Category:
- LED Driver Evaluation Boards
- Package:
- Datasheet:
-
RDK-648.pdf
- Description:
- EVAL BOARD FOR LCS702HG PFS7625H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RDK-648 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Power Integrations
- Series:
- HiperLCS™, HiperPFS™
- Packaging:
- Box
- Product Status:
- Obsolete
- Current - Output / Channel:
- 2.75A
- Outputs and Type:
- 1 Isolated Output
- Voltage - Output:
- 39V ~ 54V
- Features:
- -
- Voltage - Input:
- 100 ~ 300 VAC
- Contents:
- Board(s)
- Utilized IC / Part:
- LCS702HG, PFS7625H
| Image |  |
 |
 |
 |
 |

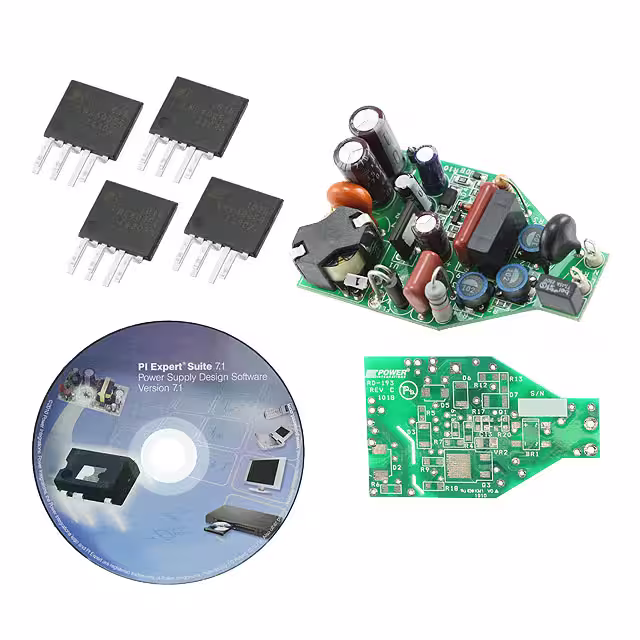

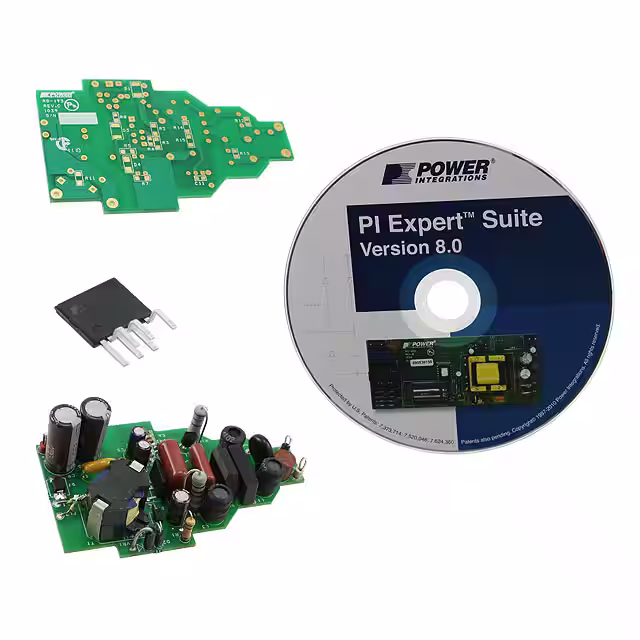

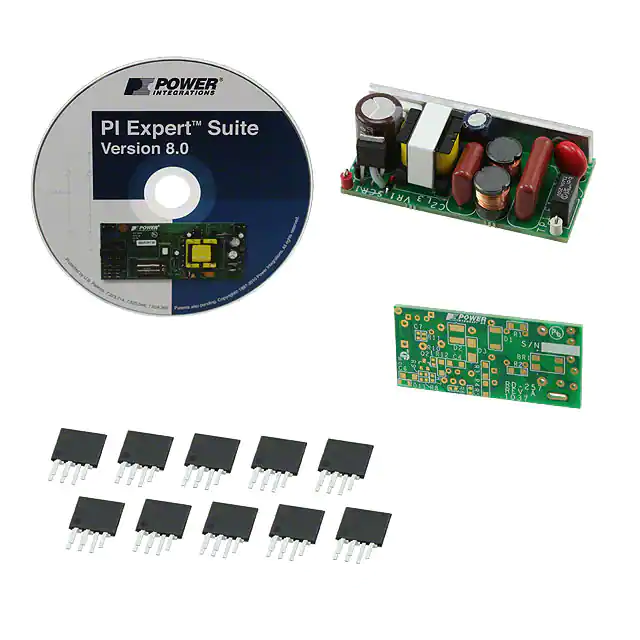

| Part Number | RDK-801 | RDK-195 | RDK-193 | RDK-257 | RDK-347 |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| Series | - | LinkSwitch®-PH | LinkSwitch®-PH | LinkSwitch®-PH | LYTSwitch™-4 |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Current - Output / Channel | 2.08A | 500mA | 330mA | 330mA | 370mA |
| Outputs and Type | 1 Isolated Output | 1 Isolated Output | 1 Non-Isolated Output | 1 Non-Isolated Output | 1 Isolated Output |
| Voltage - Output | 48V | 28V | 21V | 36V | 34V |
| Features | Dimmable | Dimmable | Dimmable | - | Dimmable |
| Voltage - Input | 100 ~ 277 VAC | 90 ~ 265 VAC | 90 ~ 265 VAC | 90 ~ 265 VAC | 90 ~ 132 VAC |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
| Utilized IC / Part | LYT6079C, PFS7626C | LNK406EG | LNK403EG | LNK405EG | LYT4313 |
