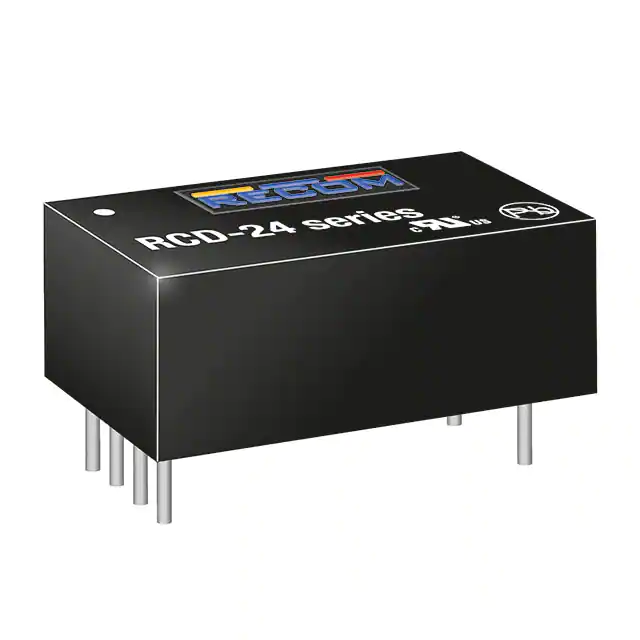

Recom Power RCD-24-1.00
- Part No.:
- RCD-24-1.00
- Manufacturer:
- Recom Power
- Category:
- LED Drivers
- Package:
- 6-DIP Module
- Datasheet:
-
RCD-24-1.00.pdf
- Description:
- LED DRIVER CC BUCK 3-31V 1A
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RCD-24-1.00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Recom Power
- Series:
- LIGHTLINE RCD-24
- Package/Case:
- 6-DIP Module
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Constant Current
- Topology:
- Buck
- Number of Outputs:
- 1
- Voltage - Input (Min):
- 6V
- Voltage - Input (Max):
- 36V
- Voltage - Output:
- 3 ~ 31V
- Current - Output (Max):
- 1A
- Power (Watts):
- 31 W
- Dimming:
- Analog, PWM
- Features:
- Remote On/Off, SCP
- Operating Temperature:
- -40°C ~ 71°C
- Efficiency:
- 96%
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm)
- Approval Agency:
- cULus
- Standard Number:
- -
| Image |  |
|
|
|
|
| Part Number | RCD-24-0.35 | RCD-24-0.70 | RCD-24-1.00 | RCD-24-0.50 | RCD-24-1.20 |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power | Recom Power |
| Series | LIGHTLINE RCD-24 | LIGHTLINE RCD-24 | LIGHTLINE RCD-24 | LIGHTLINE RCD-24 | LIGHTLINE RCD-24 |
| Package/Case | 6-DIP Module | 6-DIP Module | 6-DIP Module | 6-DIP Module | 6-DIP Module |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Type | Constant Current | Constant Current | Constant Current | Constant Current | Constant Current |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 6V | 4.5V | 6V |
| Voltage - Input (Max) | 36V | 36V | 36V | 36V | 36V |
| Voltage - Output | 2 ~ 35V | 2 ~ 35V | 3 ~ 31V | 2 ~ 35V | 3 ~ 31V |
| Current - Output (Max) | 350mA | 700mA | 1A | 500mA | 1.2A |
| Power (Watts) | 12 W | 25 W | 31 W | 18 W | 37 W |
| Dimming | Analog, PWM | Analog, PWM | Analog, PWM | Analog, PWM | Analog, PWM |
| Features | Remote On/Off, SCP | Remote On/Off, SCP | Remote On/Off, SCP | Remote On/Off, SCP | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 71°C | -40°C ~ 71°C | -40°C ~ 80°C | -40°C ~ 65°C |
| Efficiency | 96% | 96% | 96% | 96% | 96% |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) |
| Approval Agency | cULus | cULus | cULus | cULus | cULus |
| Standard Number | - | - | - | - | - |
