Radiocrafts AS RC1180-MBUS3
- Part No.:
- RC1180-MBUS3
- Manufacturer:
- Radiocrafts AS
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Datasheet:
-
RC1180-MBUS3.pdf
- Description:
- RF TXRX MOD ISM<1GHZ CAST SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RC1180-MBUS3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Radiocrafts AS
- Series:
- Wireless M-Bus
- Package/Case:
- Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- General ISM < 1GHz
- Protocol:
- Wireless M-Bus
- Modulation:
- FSK
- Frequency:
- 868MHz
- Data Rate:
- 100Kbps
- Power - Output:
- 10dBm
- Sensitivity:
- -106dBm
- Serial Interfaces:
- UART
- Antenna Type:
- Antenna Not Included, Castellation
- Utilized IC / Part:
- CC1110
- Memory Size:
- -
- Voltage - Supply:
- 2V ~ 3.6V
- Current - Receiving:
- 24mA
- Current - Transmitting:
- 37mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C

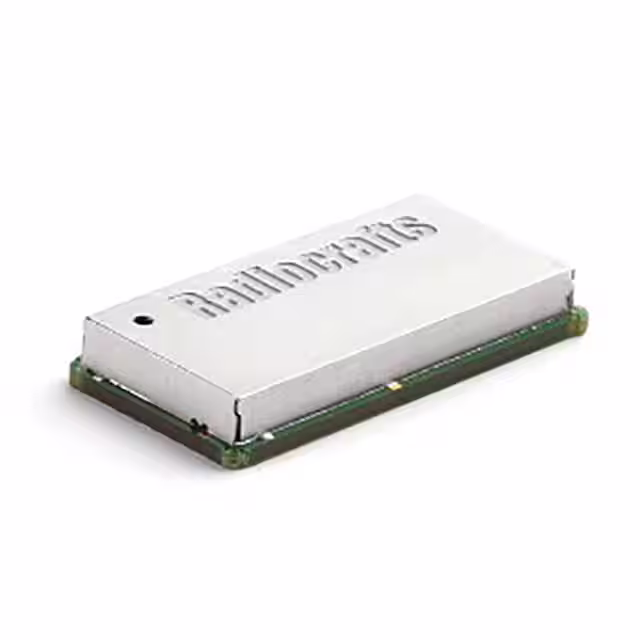

| Image |  |
|
|
 |
|
| Part Number | RC1180-RC232 | RC1180-MBUS3 | RC1180HP-RC232 | RC1180HP-MBUS3 | RC1180-KNX2 |
| Manufacturer | Radiocrafts AS | Radiocrafts AS | Radiocrafts AS | Radiocrafts AS | Radiocrafts AS |
| Series | RC232™ | Wireless M-Bus | RC232™ | Wireless M-Bus | - |
| Package/Case | Module | Module | Module | Module | 30-SMD Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Box (TB) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | RC232 | Wireless M-Bus | RC232 | Wireless M-Bus | KNX |
| Modulation | GFSK | FSK | GFSK | - | FSK |
| Frequency | 868MHz ~ 870MHz | 868MHz | 868MHz ~ 870MHz | 868MHz ~ 870MHz | 868MHz |
| Data Rate | 100Kbps | 100Kbps | 76.8kbps | 100Kbps | 32kbps |
| Power - Output | 10dBm | 10dBm | 27dBm | 27dBm | 10dBm |
| Sensitivity | -110dBm | -106dBm | -109dBm | -110dBm | -101dBm |
| Serial Interfaces | UART | UART | UART | UART | UART |
| Antenna Type | Antenna Not Included, Castellation | Antenna Not Included, Castellation | Antenna Not Included, Castellation | Antenna Not Included | Antenna Not Included, Castellation |
| Utilized IC / Part | CC1110 | CC1110 | CC1110 | - | CC1110 |
| Memory Size | - | - | - | - | - |
| Voltage - Supply | 2V ~ 3.6V | 2V ~ 3.6V | 3V ~ 3.3V | 2V ~ 3.6V | 2V ~ 3.6V |
| Current - Receiving | 24mA | 24mA | 24mA | 27mA | 24mA |
| Current - Transmitting | 37mA | 37mA | 560mA | 120mA | 37mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
