YAGEO RC0100JR-070RL
- Part No.:
- RC0100JR-070RL
- Manufacturer:
- YAGEO
- Category:
- Chip Resistor - Surface Mount
- Package:
- 01005 (0402 Metric)
- Datasheet:
-
RC0100JR-070RL.pdf
- Description:
- RES 0 OHM JUMPER 1/32W 01005
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RC0100JR-070RL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- YAGEO
- Series:
- RC_L
- Package/Case:
- 01005 (0402 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Resistance:
- 0 Ohms
- Tolerance:
- Jumper
- Power (Watts):
- -
- Composition:
- Thick Film
- Features:
- Moisture Resistant
- Temperature Coefficient:
- -
- Operating Temperature:
- -55°C ~ 125°C
- Supplier Device Package:
- -
- Ratings:
- 01005
- Size / Dimension:
- 0.016" L x 0.008" W (0.40mm x 0.20mm)
- Height - Seated (Max):
- 0.006" (0.15mm)
- Number of Terminations:
- 2
- Failure Rate:
- -

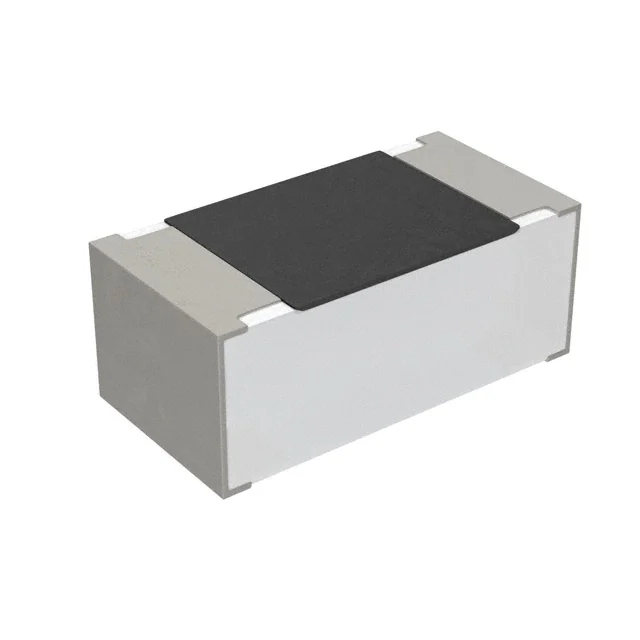

| Image |  |
.jpg) |
|
 |
|
| Part Number | RC0100JR-070RL | RC0100JR-0710KL | RC0100JR-075K1L | RC0100JR-070RP | RC0100JR-074K7L |
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Series | RC_L | RC_L | RC_L | RC_P | RC_L |
| Package/Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 0 Ohms | 10 kOhms | 5.1 kOhms | 0 Ohms | 4.7 kOhms |
| Tolerance | Jumper | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | - | 0.03W, 1/32W | 0.03W, 1/32W | - | 0.03W, 1/32W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | - | Moisture Resistant |
| Temperature Coefficient | - | ±200ppm/°C | ±200ppm/°C | - | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Supplier Device Package | - | - | - | 7C1 RoHS w/out Exemption (100% Pb-Free) | - |
| Ratings | 01005 | 01005 | 01005 | 0100 | 01005 |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
