onsemi QSB34
- Part No.:
- QSB34
- Manufacturer:
- onsemi
- Category:
- Photodiodes
- Package:
- Axial
- Datasheet:
-
QSB34.pdf
- Description:
- SENSOR PHOTODIODE 940NM AXIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
QSB34 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- -
- Package/Case:
- Axial
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Wavelength:
- 940nm
- Color - Enhanced:
- -
- Spectral Range:
- 730nm ~ 1100nm
- Diode Type:
- PIN
- Responsivity @ nm:
- -
- Response Time:
- 50ns
- Voltage - DC Reverse (Vr) (Max):
- 32 V
- Current - Dark (Typ):
- 30nA
- Active Area:
- 6.5mm²
- Viewing Angle:
- 120°
- Operating Temperature:
- -25°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole

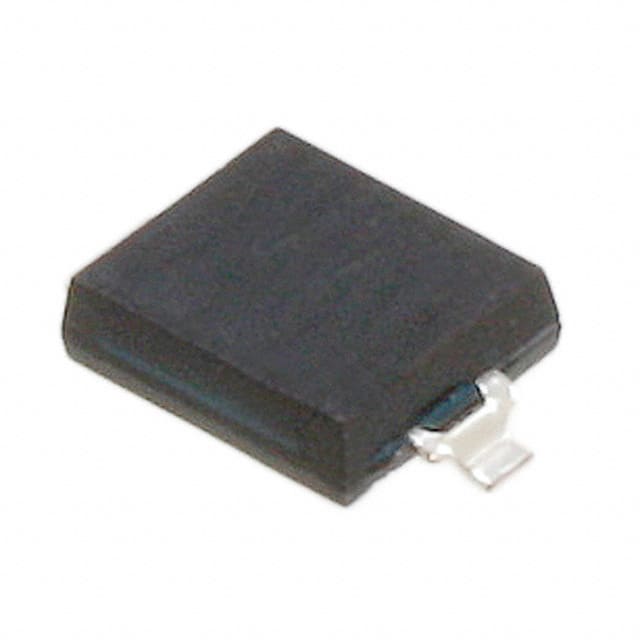

| Image |  |
 |
 |
|
 |
| Part Number | QSB34GR | QSB34CGR | QSB34CZR | QSB34ZR | QSB34 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Series | - | - | - | - | - |
| Package/Case | 2-SMD, Gull Wing | 2-SMD, Gull Wing | 2-SMD, Z-Bend | 2-SMD, Z-Bend | Axial |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active | Active | Active | Obsolete |
| Wavelength | 940nm | 940nm | 940nm | 940nm | 940nm |
| Color - Enhanced | - | - | - | - | - |
| Spectral Range | 730nm ~ 1100nm | 400nm ~ 1100nm | 400nm ~ 1100nm | 730nm ~ 1100nm | 730nm ~ 1100nm |
| Diode Type | PIN | PIN | PIN | PIN | PIN |
| Responsivity @ nm | - | - | - | - | - |
| Response Time | 50ns | 50ns | 50ns | 50ns | 50ns |
| Voltage - DC Reverse (Vr) (Max) | 32 V | 32 V | 32 V | 32 V | 32 V |
| Current - Dark (Typ) | 30nA | 30nA | 30nA | 30nA | 30nA |
| Active Area | 6.5mm² | 6.5mm² | 6.5mm² | 6.5mm² | 6.5mm² |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
