Cinch Connectivity Solutions Midwest Microwave PWD-5511-02-TNC-79
- Part No.:
- PWD-5511-02-TNC-79
- Manufacturer:
- Cinch Connectivity Solutions Midwest Microwave
- Category:
- RF Power Dividers/Splitters
- Package:
- Module
- Description:
- RF PWR DIVIDER 1GHZ-2GHZ MODULE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PWD-5511-02-TNC-79 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Cinch Connectivity Solutions Midwest Microwave
- Package/Case:
- Module
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Insertion Loss:
- 0.4dB
- Frequency:
- 1 GHz ~ 2 GHz
- Specifications:
- Isolation (Min) 20dB
- Size / Dimension:
- 3.000" L x 2.000" W (76.20mm x 50.10mm)
| Image |  |
 |
 |
 |
 |

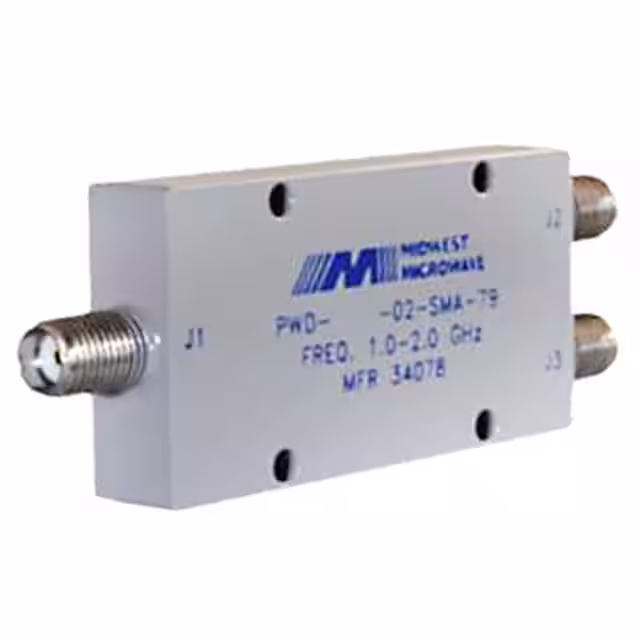

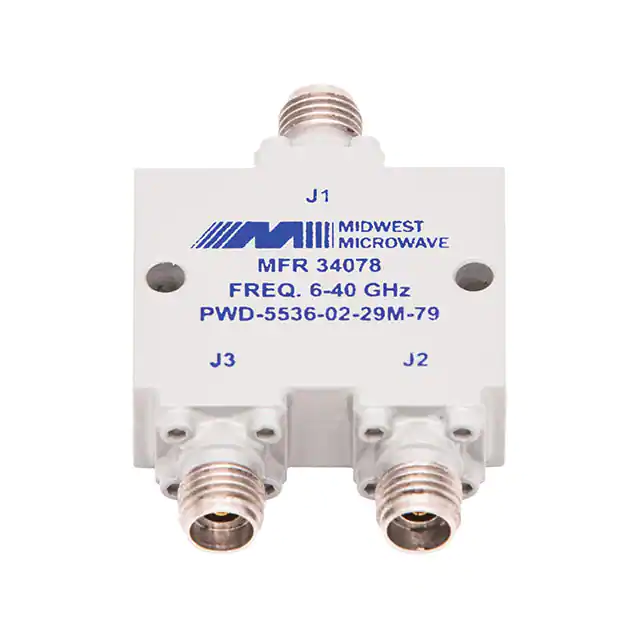

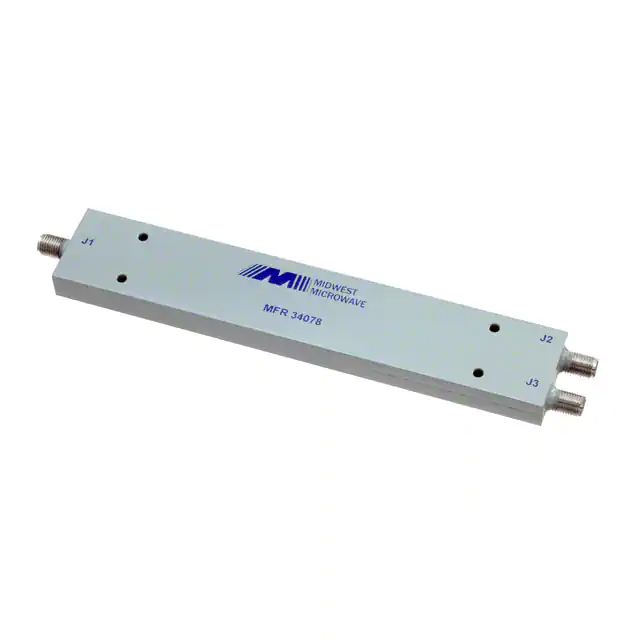

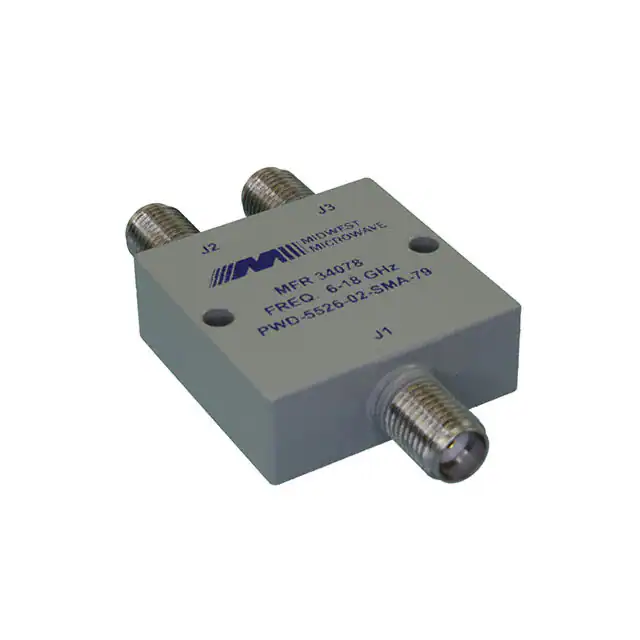

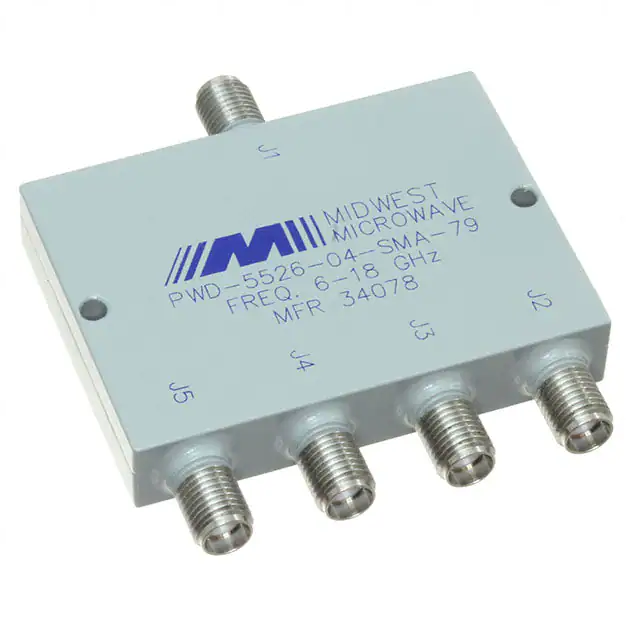

| Part Number | PWD-5530-02-SMA-79 | PWD-5526-04-SMA-79 | PWD-5530-04-SMA-79 | PWD-5526-02-SMA-79 | PWD-5536-02-29M-79 |
| Manufacturer | Cinch Connectivity Solutions Midwest Microwave | Cinch Connectivity Solutions Midwest Microwave | Cinch Connectivity Solutions Midwest Microwave | Cinch Connectivity Solutions Midwest Microwave | Cinch Connectivity Solutions Midwest Microwave |
| Package/Case | Module | Module | Module | Module | Module |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Box |
| Product Status | Active | Active | Active | Active | Active |
| Insertion Loss | 0.3dB | 1dB | 0.5dB | 0.5dB | 1.8dB |
| Frequency | 500 MHz ~ 18 GHz | 6 GHz ~ 18 GHz | 500 MHz ~ 18 GHz | 6 GHz ~ 18 GHz | 6 GHz ~ 40 GHz |
| Specifications | Isolation (Min) 18dB | Isolation (Min) 18dB | - | Isolation (Min) 18dB | Isolation (Min) 14.5dB |
| Size / Dimension | 5.500" L x 1.000" W (139.70mm x 25.40mm) | 1.460" L x 2.000" W (37.10mm x 50.80mm) | 5.200" L x 2.000" W (132.10mm x 50.80mm) | 1.000" L x 1.000" W (25.40mm x 25.40mm) | 1.060" L x 0.800" W x 0.380" H (26.92mm x 20.32mm x 9.65mm) |
