Astrodyne TDI PWC-5S
- Part No.:
- PWC-5S
- Manufacturer:
- Astrodyne TDI
- Category:
- AC DC Converters
- Package:
- 6-SIP Module
- Description:
- AC/DC CONVERTER 5V 5W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PWC-5S Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Astrodyne TDI
- Series:
- PWC5 (5W)
- Package/Case:
- 6-SIP Module
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Open Frame
- Number of Outputs:
- 1
- Voltage - Input:
- 90 ~ 264 VAC
- Voltage - Output 1:
- 5V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 1A
- Power (Watts):
- 5 W
- Applications:
- ITE (Commercial), Medical
- Features:
- Universal Input
- Operating Temperature:
- -25°C ~ 65°C (With Derating)
- Efficiency:
- 72%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 1.93" L x 0.51" W x 1.12" H (49.0mm x 13.0mm x 28.5mm)
- Approval Agency:
- cURus, UL
- Standard Number:
- 60601-1; 60950-1
| Image |  |
 |
 |
 |
|

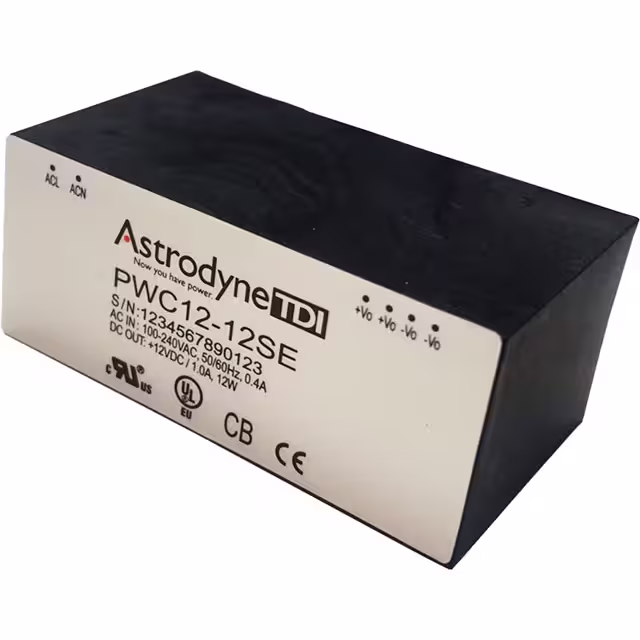

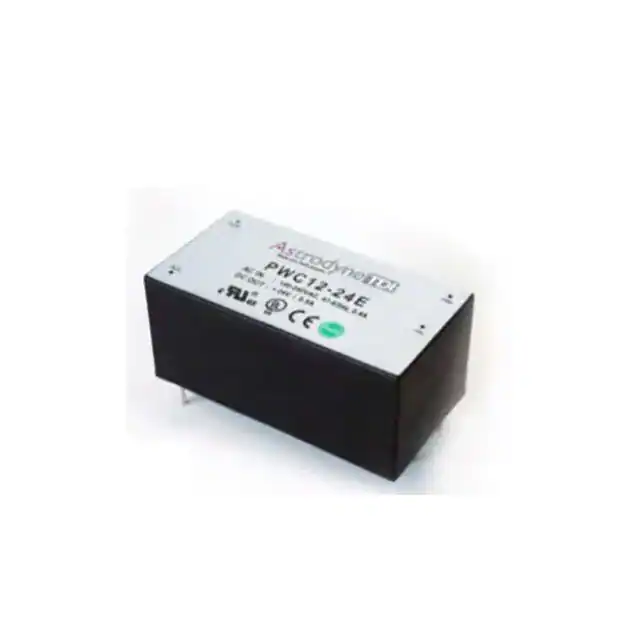

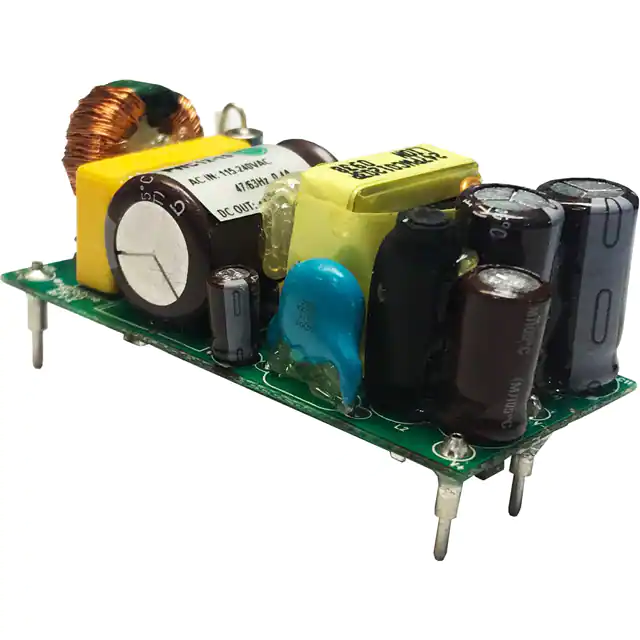

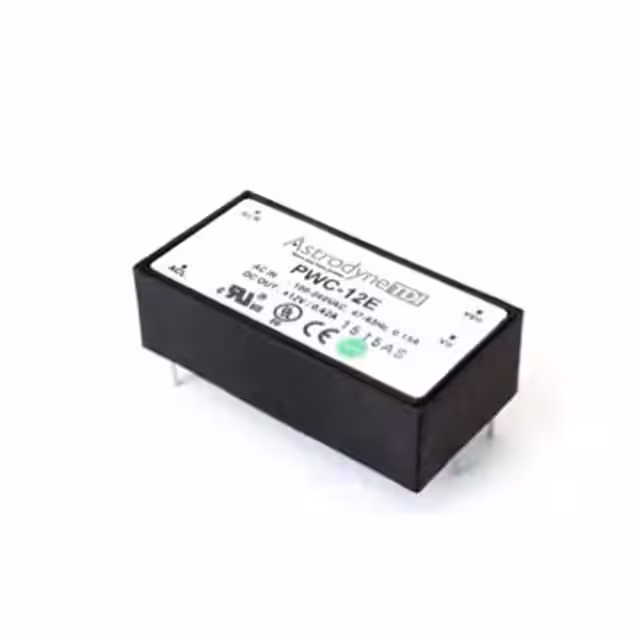

| Part Number | PWC-24E | PWC12-5SE | PWC12-3.3 | PWC12-24E | PWC12-5E |
| Manufacturer | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI |
| Series | PWC (5W) | PWC12 (12W) | PWC12 (12W) | PWC12 (12W) | PWC12 (12W) |
| Package/Case | 4-DIP Module | 6-SIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Open Frame | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 90 ~ 264 VAC | 90 ~ 264 VAC | 90 ~ 264 VAC | 90 ~ 264 VAC | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V | 5V | 3.3V | 24V | 5V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 230mA | 2.4A | 3.01A | 500mA | 2.4A |
| Power (Watts) | 5.5 W | 12 W | 12 W | 12 W | 12 W |
| Applications | ITE (Commercial) | ITE (Commercial), Medical | ITE (Commercial), Medical | ITE (Commercial) | ITE (Commercial) |
| Features | Universal Input | Universal Input | Universal Input | Universal Input | Universal Input |
| Operating Temperature | -25°C ~ 65°C (With Derating) | -20°C ~ 70°C (With Derating) | -20°C ~ 70°C (With Derating) | -20°C ~ 70°C (With Derating) | -20°C ~ 70°C (With Derating) |
| Efficiency | 76% | 72% | 77% | 82% | 75% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm) | 2.11" L x 0.92" W x 1.24" H (53.6mm x 23.3mm x 31.5mm) | 2.06" L x 1.07" W x 0.91" H (52.3mm x 27.2mm x 23.0mm) | 2.06" L x 1.07" W x 0.91" H (52.4mm x 27.2mm x 23.0mm) | 2.06" L x 1.07" W x 0.91" H (52.4mm x 27.2mm x 23.0mm) |
| Approval Agency | cURus, UL | cURus, UL | cURus, UL | CB, cURus, UL | CB, cURus, UL |
| Standard Number | - | 60601-1; 60950-1 | 60601-1; 60950-1 | - | - |
