PUI Audio, Inc. PUM-2745L-HD-R
- Part No.:
- PUM-2745L-HD-R
- Manufacturer:
- PUI Audio, Inc.
- Category:
- Microphones
- Package:
- Datasheet:
-
PUM-2745L-HD-R.pdf
- Description:
- MIC ANALOG UNI -45DB 0.236"DIA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PUM-2745L-HD-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- PUI Audio, Inc.
- Series:
- PUM
- Packaging:
- Tray
- Product Status:
- Active
- Type:
- Electret Condenser
- Output Type:
- Analog
- Direction:
- Unidirectional
- Frequency Range:
- 20 Hz ~ 20 kHz
- Sensitivity:
- -45dB ±3dB
- S/N Ratio:
- 71dB
- Impedance:
- 2.2 kOhms
- Voltage - Rated:
- 2 V
- Voltage Range:
- 1 V ~ 10 V
- Current - Supply:
- 110 µA
- Port Location:
- Top
- Ratings:
- -
- Termination:
- Solder Pads
- Size / Dimension:
- 0.236" Dia (6.00mm)
- Height (Max):
- 0.106" (2.70mm)
- Shape:
- Circular
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

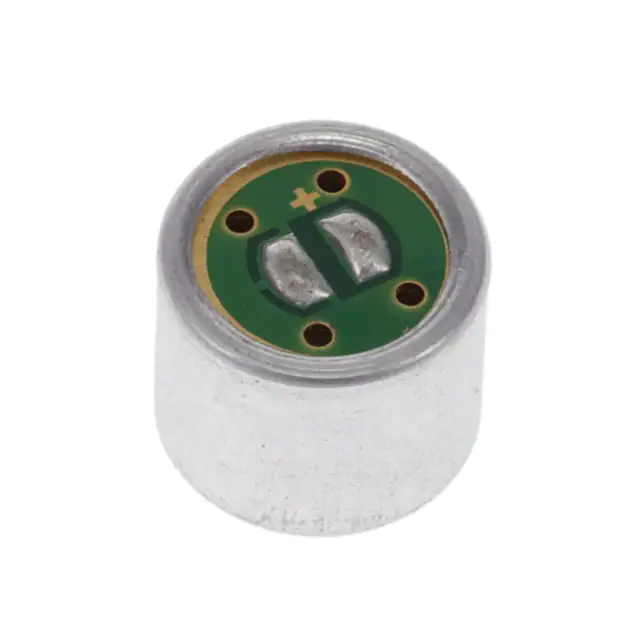

| Part Number | PUM-3546L-R | PUM-3046L-R | PUM-2745L-HD-R | PUM-5250L-C3310-R | PUM-5250L-C3310-LWC50-R |
| Manufacturer | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. |
| Series | PUM | PUM | PUM | PUM | PUM |
| Packaging | Bulk | Bulk | Tray | Box | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Electret Condenser | Electret Condenser | Electret Condenser | Electret Condenser | Electret Condenser |
| Output Type | Analog | Analog | Analog | Analog | Analog |
| Direction | Unidirectional | Unidirectional | Unidirectional | Unidirectional | Unidirectional |
| Frequency Range | 30 Hz ~ 15 kHz | 30 Hz ~ 15 kHz | 20 Hz ~ 20 kHz | - | 20 Hz ~ 20 kHz |
| Sensitivity | -46dB ±3dB | -46dB ±4dB | -45dB ±3dB | -50dB ±4dB | -50dB ±4dB |
| S/N Ratio | 55dB | 60dB | 71dB | 55dB | 55dB |
| Impedance | 2.2 kOhms | 2.2 kOhms | 2.2 kOhms | - | 680 Ohms |
| Voltage - Rated | 2 V | 2 V | 2 V | 2 V | 2 V |
| Voltage Range | 2 V ~ 10 V | 2 V ~ 10 V | 1 V ~ 10 V | - | 1 V ~ 10 V |
| Current - Supply | 500 µA | 500 µA | 110 µA | 500 µA | 500 µA |
| Port Location | Top | Top | Top | Top | Top |
| Ratings | - | - | - | - | - |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Size / Dimension | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) |
| Height (Max) | 0.146" (3.70mm) | 0.126" (3.20mm) | 0.106" (2.70mm) | 0.205" (5.20mm) | 0.205" (5.20mm) |
| Shape | Circular | Circular | Circular | Circular | Circular |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
