Bourns Inc. PTD904-20CAP-C203
- Part No.:
- PTD904-20CAP-C203
- Manufacturer:
- Bourns Inc.
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Description:
- POT 20K OHM 1/40W CARBON R-LOG
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PTD904-20CAP-C203 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- Pro Audio PTD90
- Packaging:
- Tray
- Product Status:
- Active
- Resistance (Ohms):
- 20k
- Tolerance:
- ±20%
- Power (Watts):
- 0.025W, 1/40W
- Built in Switch:
- None
- Number of Turns:
- 1.0
- Features:
- -
- Taper:
- Reverse Logarithmic
- Number of Gangs:
- 4
- Adjustment Type:
- Side Adjustment
- Temperature Coefficient:
- -
- Rotation:
- 300°
- Resistive Material:
- Carbon
- Termination Style:
- PC Pins, Board Locks
- Actuator Type:
- Round
- Actuator Length:
- -
- Actuator Diameter:
- 0.236" (6.00mm)
- Bushing Thread:
- M7 x 0.75
- Mounting Type:
- Panel Mount
| Image |  |
 |
|
 |
|

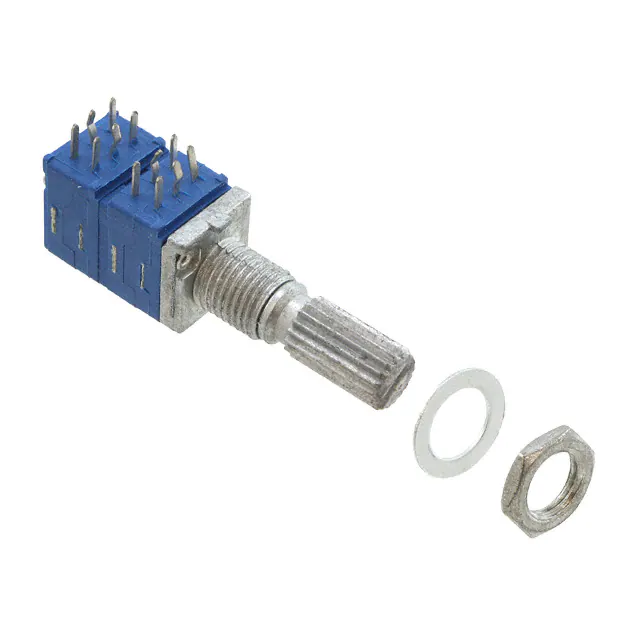

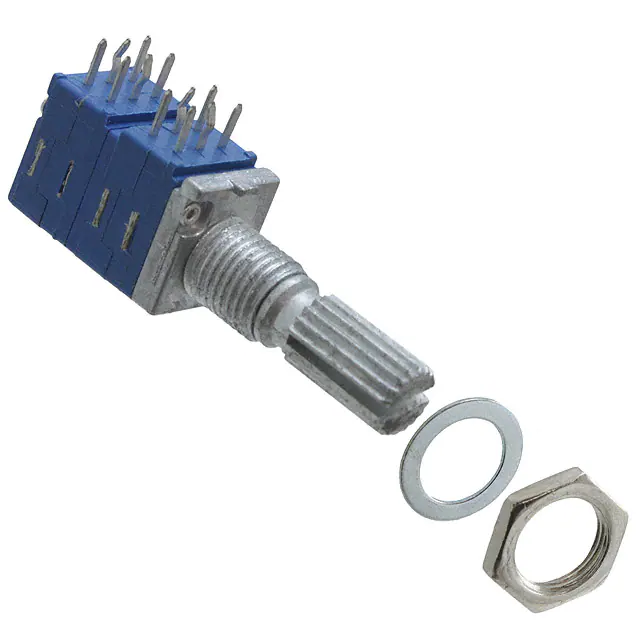

| Part Number | PTD904-1015K-B103 | PTD904-1020K-A103 | PTD904-2020K-B103 | PTD904-1015P-B203 | PTD904-1015F-A104 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | Pro Audio PTD90 | Pro Audio PTD90 | Pro Audio PTD90 | Pro Audio PTD90 | Pro Audio PTD90 |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 10k | 20k | 100k |
| Tolerance | ±10% | ±10% | ±20% | ±10% | ±10% |
| Power (Watts) | 0.05W, 1/20W | 0.025W, 1/40W | 0.05W, 1/20W | 0.05W, 1/20W | 0.025W, 1/40W |
| Built in Switch | None | None | None | None | None |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Features | - | - | - | - | - |
| Taper | Linear | Logarithmic | Linear | Linear | Logarithmic |
| Number of Gangs | 4 | 4 | 4 | 4 | 4 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | - | - | - | - | - |
| Rotation | 300° | 300° | 300° | 300° | 300° |
| Resistive Material | Carbon | Carbon | Carbon | Carbon | Carbon |
| Termination Style | PC Pins, Board Locks | PC Pins, Board Locks | PC Pins, Board Locks | PC Pins, Board Locks | PC Pins, Board Locks |
| Actuator Type | Knurled and Slotted | Knurled and Slotted | Knurled and Slotted | Round | Flatted |
| Actuator Length | 0.591" (15.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
