Amphenol Piher Sensing Systems PT15NV18-223A2020-E-S

Name: PT15NV18-223A2020-E-S
Brand: Amphenol Piher Sensing Systems
SKU: PT15NV18-223A2020-E-S
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: PT15NV18-223A2020-E-S

Manufacturer:: Amphenol Piher Sensing Systems

Category:: Trimmer Potentiometers

Package:

Datasheet:: PT15NV18-223A2020-E-S.pdf

Description:: TRIMMER 22K OHM 0.25W PC PIN TOP

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

PT15NV18-223A2020-E-S Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Amphenol Piher Sensing Systems

Series:: PT15

Packaging:: Bulk

Product Status:: Active

Resistance:: 22 kOhms

Power (Watts):: 0.25W, 1/4W

Tolerance:: ±20%

Temperature Coefficient:: ±300ppm/°C

Number of Turns:: 1.0

Adjustment Type:: Top Adjustment

Resistive Material:: Carbon

Mounting Type:: Through Hole

Termination Style:: PC Pins

Size / Dimension:: Round - 0.591" Dia (15.00mm)

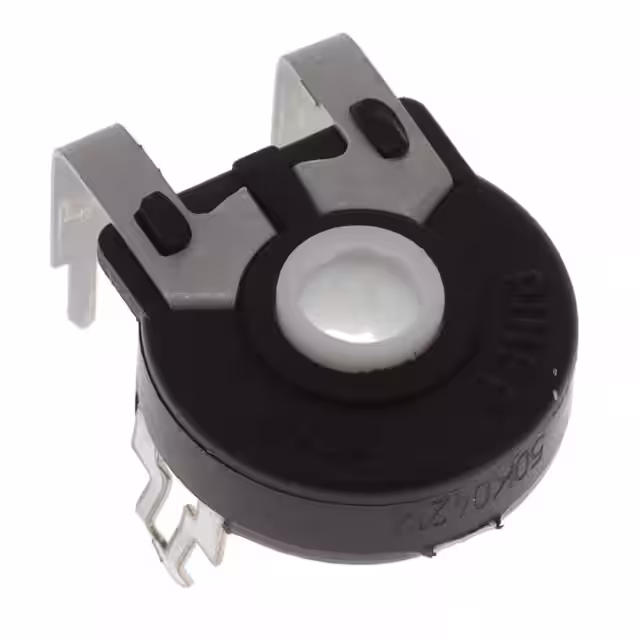

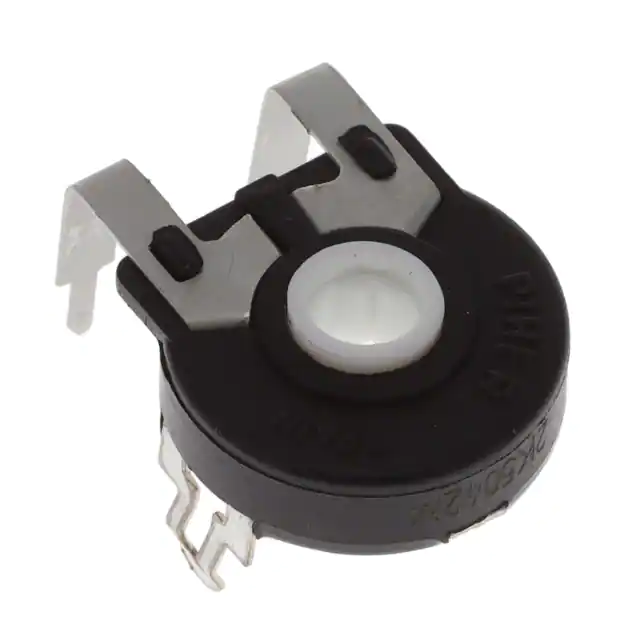

Part Number	PT15NV18-223A2020-E-S	PT15NV18-503A2020-S	PT15NV18-103A2020-S	PT15NV18-253A2020-S	PT15NV18-252A2020-S
Manufacturer	Amphenol Piher Sensing Systems	Amphenol Piher Sensing Systems	Amphenol Piher Sensing Systems	Amphenol Piher Sensing Systems	Amphenol Piher Sensing Systems
Series	PT15	PT15	PT15	PT15	PT15
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Resistance	22 kOhms	50 kOhms	10 kOhms	25 kOhms	2.5 kOhms
Power (Watts)	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W
Tolerance	±20%	±20%	±20%	±20%	±20%
Temperature Coefficient	±300ppm/°C	±300ppm/°C	±300ppm/°C	±300ppm/°C	±300ppm/°C
Number of Turns	1.0	1.0	1.0	1.0	1.0
Adjustment Type	Top Adjustment	Top Adjustment	Top Adjustment	Top Adjustment	Top Adjustment
Resistive Material	Carbon	Carbon	Carbon	Carbon	Carbon
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination Style	PC Pins	PC Pins	PC Pins	PC Pins	PC Pins
Size / Dimension	Round - 0.591" Dia (15.00mm)	Round - 0.591" Dia (15.00mm)	Round - 0.591" Dia (15.00mm)	Round - 0.591" Dia (15.00mm)	Round - 0.591" Dia (15.00mm)
