Panasonic Industrial Automation Sales PM4HW-H-DC12V
- Part No.:
- PM4HW-H-DC12V
- Manufacturer:
- Panasonic Industrial Automation Sales
- Category:
- Time Delay Relays
- Package:
- Datasheet:
-
PM4HW-H-DC12V.pdf
- Description:
- RELAY TIME DELAY 500HR 5A 250V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PM4HW-H-DC12V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Industrial Automation Sales
- Series:
- PM4H-W
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Mounting Type:
- Socketable
- Relay Type:
- Mechanical Relay
- Function:
- Repeat Cycle, Twin Timer
- Circuit:
- DPDT (2 Form C)
- Delay Time:
- 0.1 Sec ~ 500 Hrs
- Contact Rating @ Voltage:
- 5A @ 250VAC
- Voltage - Supply:
- 12VDC
- Termination Style:
- Plug In, 8 Pin (Octal)
- Timing Adjustment Method:
- Hand Dial
- Timing Initiate Method:
- Input Voltage
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

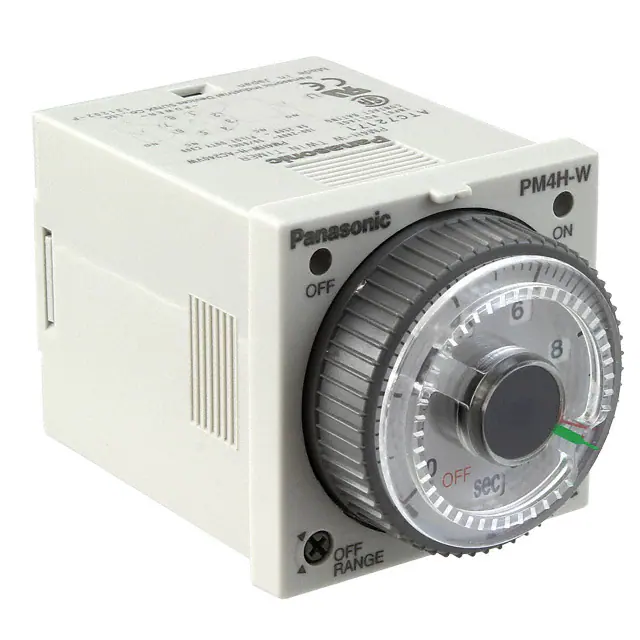

| Part Number | PM4HW-H-AC240VW | PM4HW-H-AC240V | PM4HW-H-24V | PM4HW-H-DC12V | PM4HW-H-DC12VW |
| Manufacturer | Panasonic Industrial Automation Sales | Panasonic Industrial Automation Sales | Panasonic Industrial Automation Sales | Panasonic Industrial Automation Sales | Panasonic Industrial Automation Sales |
| Series | PM4H-W | PM4H-W | PM4H-W | PM4H-W | PM4H-W |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | Socketable |
| Relay Type | Mechanical Relay | Mechanical Relay | Mechanical Relay | Mechanical Relay | Mechanical Relay |
| Function | Repeat Cycle, Twin Timer | Repeat Cycle, Twin Timer | Repeat Cycle, Twin Timer | Repeat Cycle, Twin Timer | Repeat Cycle, Twin Timer |
| Circuit | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) |
| Delay Time | 0.1 Sec ~ 500 Hrs | 0.1 Sec ~ 500 Hrs | 0.1 Sec ~ 500 Hrs | 0.1 Sec ~ 500 Hrs | 0.1 Sec ~ 500 Hrs |
| Contact Rating @ Voltage | 5A @ 250VAC | 5A @ 250VAC | 5A @ 250VAC | 5A @ 250VAC | 5A @ 250VAC |
| Voltage - Supply | 100 ~ 240VAC | 100 ~ 240VAC | 24VAC/DC | 12VDC | 12VDC |
| Termination Style | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial | Hand Dial | Hand Dial | Hand Dial | Hand Dial |
| Timing Initiate Method | Input Voltage | Input Voltage | Input Voltage | Input Voltage | Input Voltage |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
