Microchip Technology PL135-47OC-R
- Part No.:
- PL135-47OC-R
- Manufacturer:
- Microchip Technology
- Category:
- Clock Buffers, Drivers
- Package:
- 16-TSSOP (0.173", 4.40mm Width)
- Datasheet:
-
PL135-47OC-R.pdf
- Description:
- IC CLK BUFFER 1:4 40MHZ 16TSSOP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PL135-47OC-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- -
- Package/Case:
- 16-TSSOP (0.173", 4.40mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Discontinued at Digi-Key
- Type:
- Fanout Buffer (Distribution)
- Number of Circuits:
- 1
- Ratio - Input:Output:
- 1:4
- Differential - Input:Output:
- No/No
- Input:
- Crystal
- Output:
- LVCMOS
- Frequency - Max:
- 40 MHz
- Voltage - Supply:
- 1.62V ~ 3.63V
- Operating Temperature:
- 0°C ~ 70°C
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 16-TSSOP
| Image |  |
 |
|
 |
|

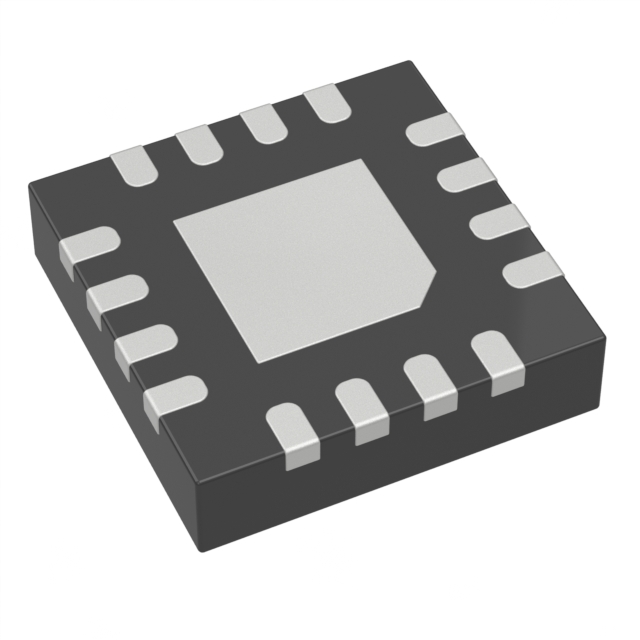

| Part Number | PL135-67QC-R | PL135-27GI | PL135-27GI-R | PL135-37SC | PL135-37SC-R |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | - | - | - | - | - |
| Package/Case | 16-WFQFN Exposed Pad | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Packaging | Tape & Reel (TR) | Bag | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:6 | 1:2 | 1:2 | 1:3 | 1:3 |
| Differential - Input:Output | No/No | No/No | No/No | No/No | No/No |
| Input | Crystal | Crystal | Crystal | Crystal | Crystal |
| Output | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Frequency - Max | 40 MHz | 40 MHz | 40 MHz | 40 MHz | 40 MHz |
| Voltage - Supply | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 16-QFN (3x3) | 6-DFN (2x1.3) | 6-DFN (2x1.3) | 8-SOP | 8-SOP |
- Include Parts
- Popular Search
The following parts include "PL135-47OC-R" in Silicon Labs PL135-47OC-R.
- Part Number
- Manufacturer
- Package
- Description
- PL133-37TC-R Microchip Technology SOT-23-6 IC CLK BUFFER 1:3 150MHZ SOT23-6
- PL133-27GC-R Microchip Technology 6-UFDFN Exposed Pad IC CLK BUFFER 1:2 150MHZ 6DFN
- LMK1C1102DQFR Texas Instruments 8-WFDFN IC CLK BUFFER 1:2 250MHZ 8WSON
- LMK1C1102PWR Texas Instruments 8-TSSOP (0.173", 4.40mm Width) IC CLK BUFFER 1:2 250MHZ 8TSSOP
- LMK1C1104DQFR Texas Instruments 8-WFDFN IC CLK BUFFER 1:4 250MHZ 8WSON
- LMK1C1104PWR Texas Instruments 8-TSSOP (0.173", 4.40mm Width) IC CLK BUFFER 1:4 250MHZ 8TSSOP
- CDC3RL02YFPR Texas Instruments 8-XFBGA, DSBGA IC CLK BUFFER 1:2 52MHZ 8DSBGA
- SY75602ATWL-TR Microchip Technology 8-VFDFN IC CLK BUFFER 1:2 250MHZ 8VDFN
- SY75603ATWL-TR Microchip Technology 16-VFQFN Exposed Pad IC CLK BUFFER 1:2 250MHZ 16VQFN
- 5PB1102CMGI8 Renesas Electronics Corporation 8-UFDFN IC CLOCK BUFFER 1:2 8DFN
