Microchip Technology PIC16F18326T-I/JQ
- Part No.:
- PIC16F18326T-I/JQ
- Manufacturer:
- Microchip Technology
- Category:
- Microcontrollers
- Package:
- 16-UQFN Exposed Pad
- Datasheet:
-
PIC16F18326T-I/JQ.pdf
- Description:
- IC MCU 8BIT 28KB FLASH 16UQFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PIC16F18326T-I/JQ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- 16-UQFN Exposed Pad
- Series:
- PIC® XLP™ 16F, Functional Safety (FuSa)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Core Processor:
- PIC
- Core Size:
- 8-Bit
- Speed:
- 32MHz
- Connectivity:
- I2C, LINbus, SPI, UART/USART
- Peripherals:
- Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O:
- 12
- Program Memory Size:
- 28KB (16K x 14)
- Program Memory Type:
- FLASH
- EEPROM Size:
- 256 x 8
- RAM Size:
- 2K x 8
- Voltage - Supply (Vcc/Vdd):
- 2.3V ~ 5.5V
- Data Converters:
- A/D 11x10b; D/A 1x5b
- Oscillator Type:
- Internal
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:

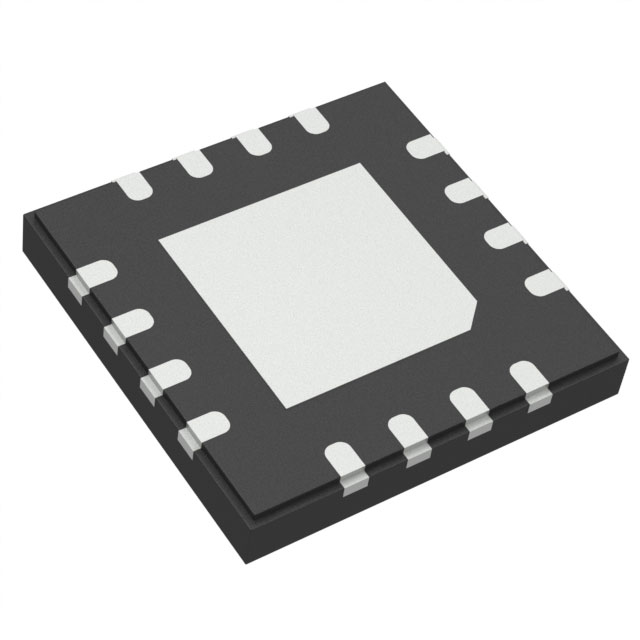

| Image |  |
 |
 |
 |
|
| Part Number | PIC16F18326T-I/JQ | PIC16F18326T-I/SL | PIC16F18326T-I/ST | PIC16F18326T-E/7NVAO | PIC16F18326T-E/STVAO |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Package/Case | 16-UQFN Exposed Pad | 14-SOIC (0.154", 3.90mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 16-VQFN Exposed Pad | 14-TSSOP (0.173", 4.40mm Width) |
| Series | PIC® XLP™ 16F, Functional Safety (FuSa) | PIC® XLP™ 16F, Functional Safety (FuSa) | PIC® XLP™ 16F, Functional Safety (FuSa) | PIC® XLP™ 16F, Functional Safety (FuSa) | PIC® XLP™ 16F, Functional Safety (FuSa) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Core Processor | PIC | PIC | PIC | PIC | PIC |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART | I2C, LINbus, SPI, UART/USART | I2C, LINbus, SPI, UART/USART | I2C, LINbus, SPI, UART/USART | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 | 12 | 12 | 12 | 12 |
| Program Memory Size | 28KB (16K x 14) | 28KB (16K x 14) | 28KB (16K x 14) | 28KB (16K x 14) | 28KB (16K x 14) |
| Program Memory Type | FLASH | FLASH | FLASH | FLASH | FLASH |
| EEPROM Size | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| RAM Size | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Data Converters | A/D 11x10b; D/A 1x5b | A/D 11x10b; D/A 1x5b | A/D 11x10b; D/A 1x5b | A/D 11x10b | A/D 11x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Grade | - | - | - | Automotive | Automotive |
| Qualification | - | - | - | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Wettable Flank | Surface Mount |
| Supplier Device Package |
