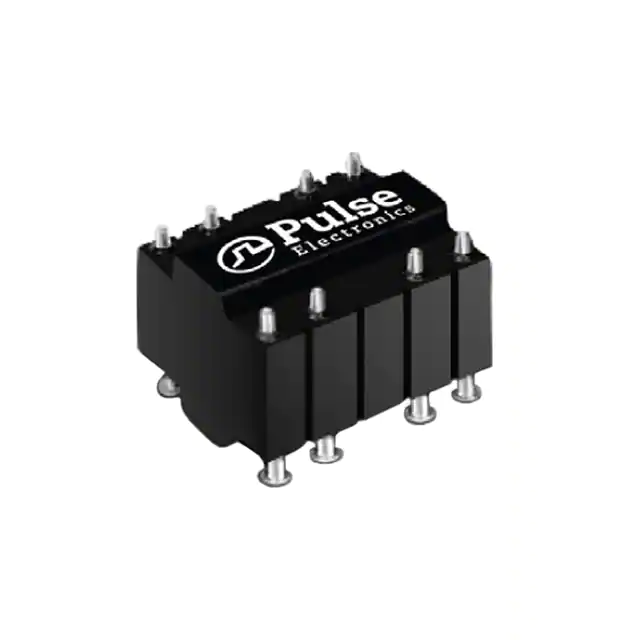

Pulse Electronics PE-68422NL
- Part No.:
- PE-68422NL
- Manufacturer:
- Pulse Electronics
- Category:
- Switching Converter, SMPS Transformers
- Package:
- Description:
- XFMR FLYBACK DC/DC CONV SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PE-68422NL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- Type:
- For DC/DC Converters
- Applications:
- Flyback Converters
- Intended Chipset:
- LM2585, LM2586, LM2587, LM2588
- Chipset Manufacturer:
- National Semiconductor
- Voltage - Primary:
- 18 ~ 36V
- Voltage - Auxiliary:
- -
- Voltage - Isolation:
- 1500Vrms
- Inductance @ Frequency:
- -
- Frequency:
- -
- Operating Temperature:
- -40°C ~ 130°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.970" L x 1.070" W (24.64mm x 27.18mm)
- Height - Seated (Max):
- 0.680" (17.27mm)
- Footprint:
- 0.970" L x 1.070" W (24.64mm x 27.18mm)
- Style:
- -
| Image |  |
 |
 |
.jpg) |
|
| Part Number | PE-68422NL | PE-68421NL | PE-68413NL | PE-68414NL | PE-68422 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | - | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Type | For DC/DC Converters | For DC/DC Converters | For DC/DC Converters | For DC/DC Converters | For DC/DC Converters |
| Applications | Flyback Converters | Flyback Converters | Flyback Converters | Flyback Converters | Flyback Converters |
| Intended Chipset | LM2585, LM2586, LM2587, LM2588 | LM2585, LM2586, LM2587, LM2588 | LM2585, LM2586, LM2587, LM2588 | LM2585, LM2586, LM2587, LM2588 | LM2585, LM2586, LM2587, LM2588 |
| Chipset Manufacturer | National Semiconductor | National Semiconductor | National Semiconductor | National Semiconductor | National Semiconductor |
| Voltage - Primary | 18 ~ 36V | 18 ~ 36V | 18 ~ 36V | 18 ~ 36V | 18 ~ 36V |
| Voltage - Auxiliary | - | - | - | - | - |
| Voltage - Isolation | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms |
| Inductance @ Frequency | - | - | - | - | - |
| Frequency | - | - | - | - | - |
| Operating Temperature | -40°C ~ 130°C | -40°C ~ 130°C | -40°C ~ 130°C | -40°C ~ 130°C | -40°C ~ 130°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.970" L x 1.070" W (24.64mm x 27.18mm) | 0.970" L x 1.070" W (24.64mm x 27.18mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.970" L x 1.070" W (24.64mm x 27.18mm) |
| Height - Seated (Max) | 0.680" (17.27mm) | 0.680" (17.27mm) | 0.480" (12.19mm) | 0.480" (12.19mm) | 0.680" (17.27mm) |
| Footprint | 0.970" L x 1.070" W (24.64mm x 27.18mm) | 0.970" L x 1.070" W (24.64mm x 27.18mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.970" L x 1.070" W (24.64mm x 27.18mm) |
| Style | - | - | - | - | - |
