Pulse Electronics PE-68386NL
- Part No.:
- PE-68386NL
- Manufacturer:
- Pulse Electronics
- Category:
- Pulse Transformers
- Package:
- Datasheet:
-
PE-68386NL.pdf
- Description:
- PULSE XFMR 1:1 785UH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PE-68386NL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- -
- Packaging:
- Tube
- Product Status:
- Active
- Transformer Type:
- -
- Inductance:
- 785µH
- ET (Volt-Time):
- 9.7VµS
- Turns Ratio - Primary:Secondary:
- 1:1
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.340" L x 0.265" W (8.64mm x 6.73mm)
- Height - Seated (Max):
- 0.098" (2.49mm)
- Operating Temperature:
- -40°C ~ 130°C
- Grade:
- -
- Qualification:
- -
| Image |  |
|
 |
 |
|

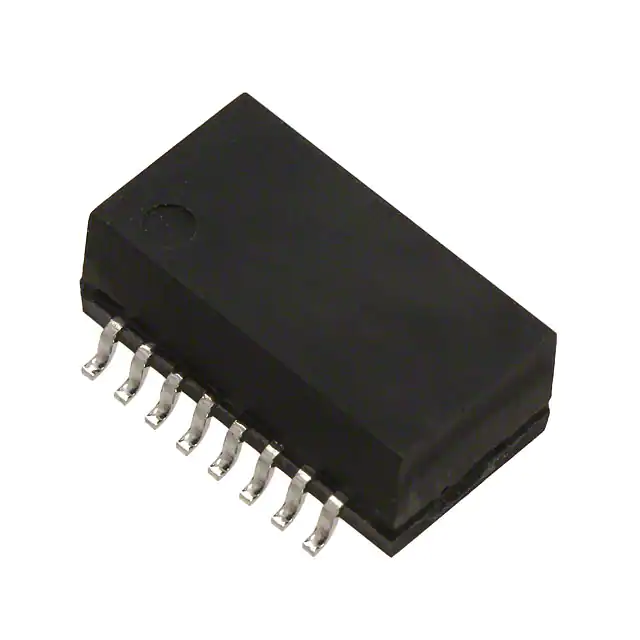

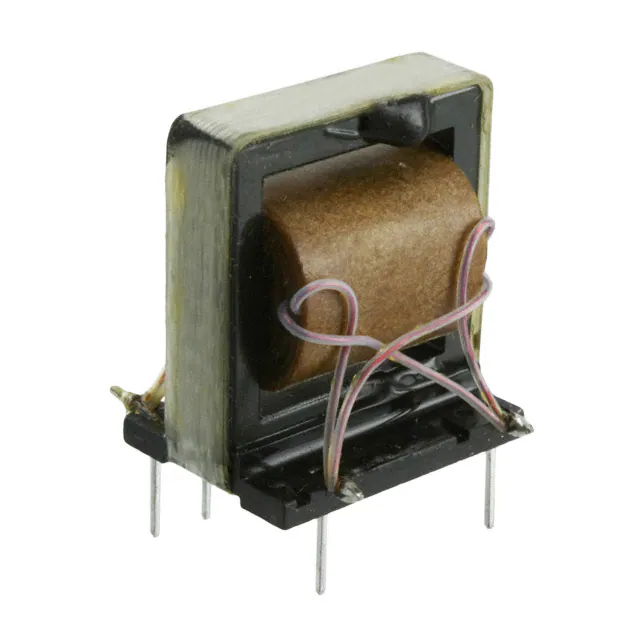

| Part Number | PE-68386NLT | PE-68386NL | PE-63387NL | PE-65723NL | PE-65726NLT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | - | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tray | Tube | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Transformer Type | - | - | - | Isolation and Data Interface (Encapsulated) | Isolation and Data Interface (Encapsulated) |
| Inductance | 785µH | 785µH | 1.5mH | 75µH | 200µH |
| ET (Volt-Time) | 9.7VµS | 9.7VµS | 320VµS | 1.8VµS | - |
| Turns Ratio - Primary:Secondary | 1:1 | 1:1 | 1:1:1 | 1:1 | 1CT:1CT |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Size / Dimension | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.500" L x 0.285" W (12.70mm x 7.24mm) |
| Height - Seated (Max) | 0.098" (2.49mm) | 0.098" (2.49mm) | 1.200" (30.48mm) | 0.210" (5.33mm) | 0.210" (5.33mm) |
| Operating Temperature | -40°C ~ 130°C | -40°C ~ 130°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
