Everlight Electronics Co Ltd PD70-01B/TR7
- Part No.:
- PD70-01B/TR7
- Manufacturer:
- Everlight Electronics Co Ltd
- Category:
- Photodiodes
- Package:
- 2-SMD, Gull Wing
- Description:
- SENSOR PHOTODIODE 940NM 2SMD GW
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PD70-01B/TR7 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Everlight Electronics Co Ltd
- Series:
- -
- Package/Case:
- 2-SMD, Gull Wing
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Wavelength:
- 940nm
- Color - Enhanced:
- -
- Spectral Range:
- 730nm ~ 1100nm
- Diode Type:
- PIN
- Responsivity @ nm:
- -
- Response Time:
- 50ns
- Voltage - DC Reverse (Vr) (Max):
- 32 V
- Current - Dark (Typ):
- 5nA
- Active Area:
- -
- Viewing Angle:
- -
- Operating Temperature:
- -25°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
 |
 |
 |

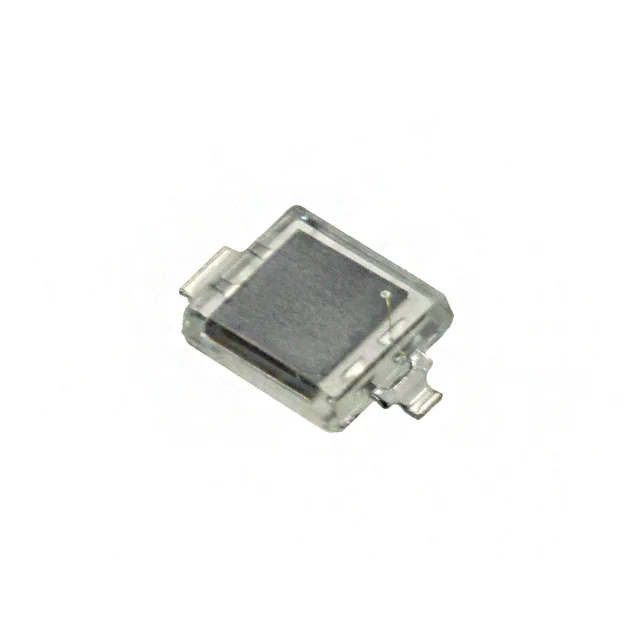

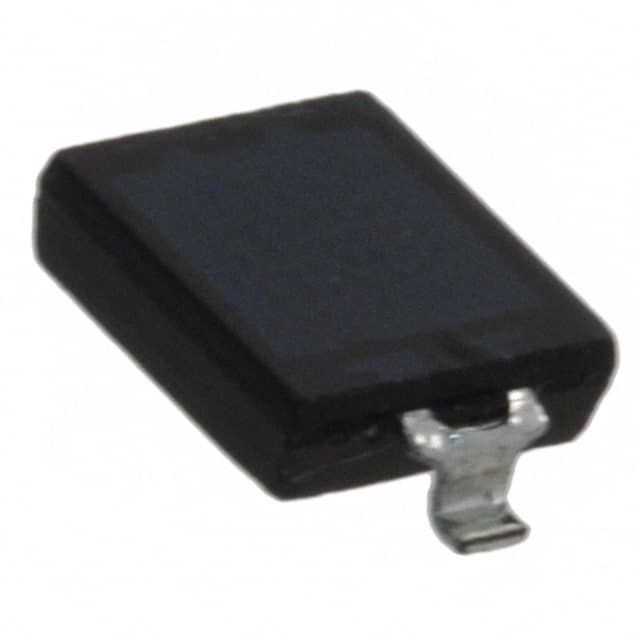

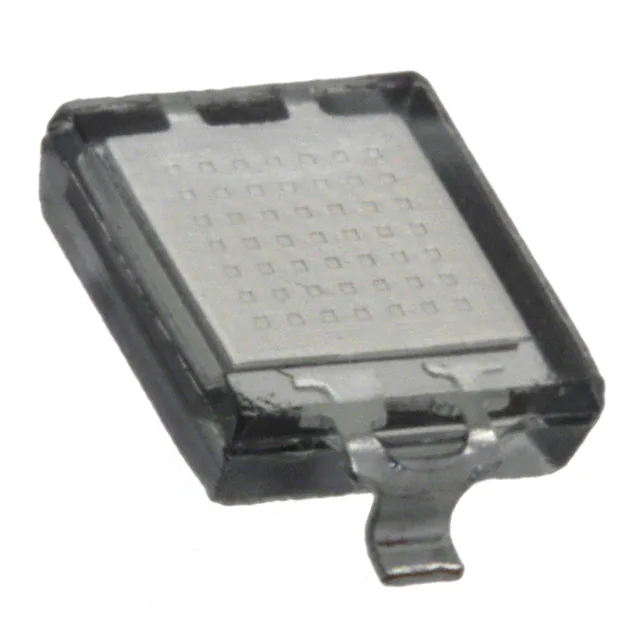

| Part Number | PD70-01B/TR7 | PD70-01C/TR7 | PD70-01C/TR10 | PD70-01B/TR10 | PD70-01B/S57/TR7 |
| Manufacturer | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| Series | - | - | - | - | - |
| Package/Case | 2-SMD, Gull Wing | 2-SMD, Gull Wing | 2-SMD, Z-Bend | 2-SMD, Z-Bend | 2-SMD, Gull Wing |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Wavelength | 940nm | 940nm | 940nm | 940nm | 940nm |
| Color - Enhanced | - | - | - | - | - |
| Spectral Range | 730nm ~ 1100nm | 400nm ~ 1100nm | 400nm ~ 1100nm | 730nm ~ 1100nm | 730nm ~ 1100nm |
| Diode Type | PIN | PIN | PIN | PIN | PIN |
| Responsivity @ nm | - | - | - | - | - |
| Response Time | 50ns | 50ns | 50ns | 50ns | - |
| Voltage - DC Reverse (Vr) (Max) | 32 V | 32 V | 32 V | 32 V | 32 V |
| Current - Dark (Typ) | 5nA | 5nA | 5nA | 5nA | 5nA |
| Active Area | - | - | - | - | - |
| Viewing Angle | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
