TDK Corporation PC40P9/5A160-52H

Name: PC40P9/5A160-52H
Brand: TDK Corporation
SKU: PC40P9/5A160-52H
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: PC40P9/5A160-52H

Manufacturer:: TDK Corporation

Category:: Ferrite Cores

Package:

Description:: FERRITE CORE P 160NH PCS40

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

PC40P9/5A160-52H Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TDK Corporation

Series:: P

Packaging:: Bulk

Product Status:: Obsolete

Core Type:: P

Supplier Device Package:: P 9 x 5

Material:: PC40

Diameter:: 0.366" (9.30mm)

Inductance Factor (Al):: 160 nH

Tolerance:: ±5%

Gap:: Gapped

Effective Permeability (µe):: 160.0

Initial Permeability (µi):: 2300

Core Factor (ΣI/A) mm⁻¹:: 1.24

Effective Length (le) mm:: 12.4

Effective Area (Ae) mm²:: 10.0

Minimum Core Cross Section (Amin) mm²:: 7.29

Effective Magnetic Volume (Ve) mm³:: 124.0

Finish:: Uncoated

Height:: 0.106" (2.70mm)

Length:: -

Width:: -

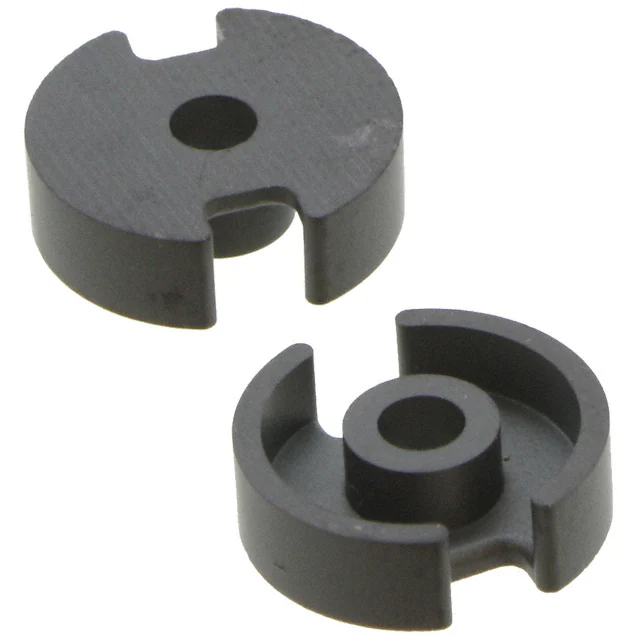

Part Number	PC40P9/5Z-52H	PC40P9/5A160-52H
Manufacturer	TDK Corporation	TDK Corporation
Series	-	P
Packaging	Tray	Bulk
Product Status	Obsolete	Obsolete
Core Type	P (Pot Core)	P
Supplier Device Package	P 9 x 5	P 9 x 5
Material	PC40	PC40
Diameter	0.288" (7.33mm)	0.366" (9.30mm)
Inductance Factor (Al)	-	160 nH
Tolerance	-	±5%
Gap	Ungapped	Gapped
Effective Permeability (µe)	821.0	160.0
Initial Permeability (µi)	-	2300
Core Factor (ΣI/A) mm⁻¹	1.24	1.24
Effective Length (le) mm	12.4	12.4
Effective Area (Ae) mm²	10.0	10.0
Minimum Core Cross Section (Amin) mm²	-	7.29
Effective Magnetic Volume (Ve) mm³	124.0	124.0
Finish	Uncoated	Uncoated
Height	0.136" (3.45mm)	0.106" (2.70mm)
Length	-	-
Width	-	-
