CUI Inc. PBO-10-5

Name: PBO-10-5
Brand: CUI Inc.
SKU: PBO-10-5
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: PBO-10-5

Manufacturer:: CUI Inc.

Category:: AC DC Converters

Package:: 16-SIP Module, 6 Leads

Description:: AC/DC CONVERTER 5V 10W

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

PBO-10-5 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: CUI Inc.

Series:: PBO-10 (10W)

Package/Case:: 16-SIP Module, 6 Leads

Packaging:: Tray

Product Status:: Obsolete

Type:: Open Frame

Number of Outputs:: 1

Voltage - Input:: 85 ~ 305 VAC, 100 ~ 430 VDC

Voltage - Output 1:: 5V

Voltage - Output 2:: -

Voltage - Output 3:: -

Voltage - Output 4:: -

Current - Output (Max):: 2A

Power (Watts):: 10 W

Applications:: Household Appliances, ITE (Commercial)

Features:: -

Operating Temperature:: -40°C ~ 85°C (With Derating)

Efficiency:: 76%

Mounting Type:: Through Hole

Size / Dimension:: 1.75" L x 0.59" W x 0.94" H (44.5mm x 15.0mm x 24.0mm)

Approval Agency:: CE, cURus

Standard Number:: 60335-1; 62368-1

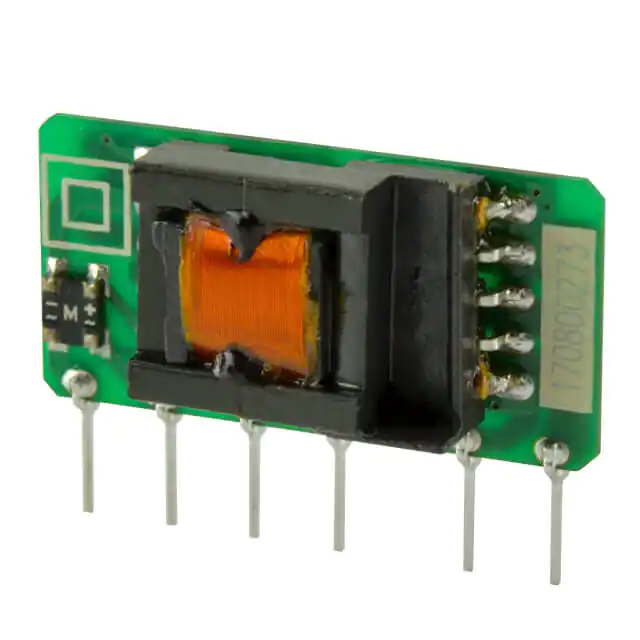

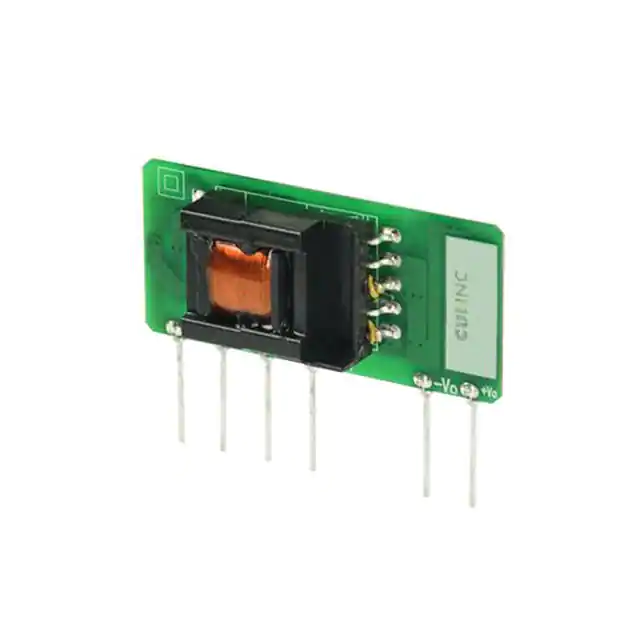

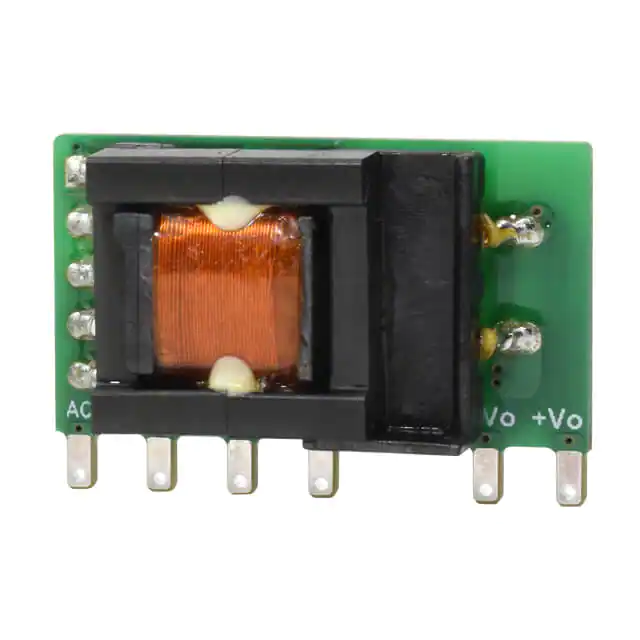

Part Number	PBO-1-S24	PBO-5-S15	PBO-5-S3.3	PBO-10C-3	PBO-5C-3
Manufacturer	CUI Inc.	CUI Inc.	CUI Inc.	CUI Inc.	CUI Inc.
Series	PBO-1 (1W)	PBO-5 (5W)	PBO-5 (5W)	PBO-10C	PBO-5C
Package/Case	12-SIP Module, 6 Leads	14-SIP Module, 6 Leads	14-SIP Module, 6 Leads	6-SIP Module	6-SIP Module
Packaging	Bulk	Tray	Tray	Tray	Tray
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Not For New Designs
Type	Open Frame	Open Frame	Open Frame	Open Frame	Open Frame
Number of Outputs	1	1	1	1	1
Voltage - Input	85 ~ 305 VAC, 70 ~ 430 VDC	85 ~ 264 VAC, 100 ~ 400 VDC	85 ~ 264 VAC, 100 ~ 400 VDC	85 ~ 305 VAC, 100 ~ 430 VDC	85 ~ 305 VAC, 70 ~ 430 VDC
Voltage - Output 1	24V	15V	3.3V	3.3V	3.3V
Voltage - Output 2	-	-	-	-	-
Voltage - Output 3	-	-	-	-	-
Voltage - Output 4	-	-	-	-	-
Current - Output (Max)	42mA	340mA	1A	2A	1A
Power (Watts)	1 W	5 W	3.3 W	6.6 W	3.3 W
Applications	ITE (Commercial)	ITE (Commercial)	ITE (Commercial)	Household Appliances, ITE (Commercial)	Household Appliances, ITE (Commercial)
Features	-	Universal Input	Universal Input	-	-
Operating Temperature	-40°C ~ 85°C (With Derating)	-25°C ~ 85°C (With Derating)	-25°C ~ 85°C (With Derating)	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	68%	77%	67%	73%	69%
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Size / Dimension	1.38" L x 0.43" W x 0.71" H (35.0mm x 11.0mm x 18.0mm)	1.57" L x 0.50" W x 0.79" H (40.0mm x 12.8mm x 20.0mm)	1.57" L x 0.50" W x 0.79" H (40.0mm x 12.8mm x 20.0mm)	1.26" L x 0.59" W x 0.68" H (32.0mm x 15.0mm x 17.2mm)	1.04" L x 0.43" W x 0.58" H (26.4mm x 11.0mm x 14.7mm)
Approval Agency	CB Scheme, EN, IEC, UL	CB Scheme, EN, IEC, UL	CB Scheme, EN, IEC, UL	CE, cURus	CE, cURus
Standard Number	55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3	55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 62368-1	55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 62368-1	60335-1; 62368-1	60335-1; 62368-1
