TE Connectivity Potter & Brumfield Relays OMIH-SH-112D1,300
- Part No.:
- OMIH-SH-112D1,300
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY GEN PURPOSE SPDT 16A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
OMIH-SH-112D1,300 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Series:
- OMIH, OEG
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 16 A
- Switching Voltage:
- 250VAC, 30VDC
- Load - Max Switching:
- -
- Coil Current:
- 60 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- Class A
- Must Operate Voltage:
- 8.4 VDC
- Must Release Voltage:
- 0.6 VDC
- Operate Time:
- 15 ms
- Release Time:
- 8 ms
- Operating Temperature:
- -30°C ~ 60°C
- Contact Material:
- Silver Tin Oxide (AgSnO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

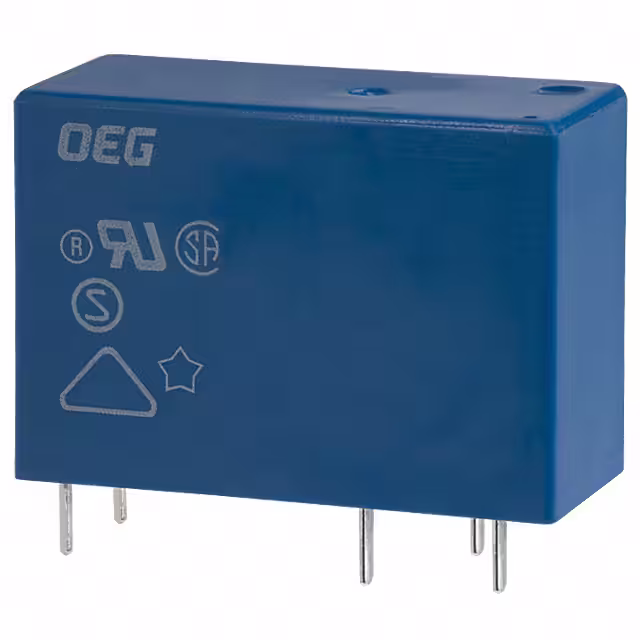

| Image | -SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg) |
|
|
 |
|
| Part Number | OMIH-SH-105L,394 | OMIH-SH-112L,394 | OMIH-SH-112LM,394 | OMIH-SS-148LM,000 | OMIH-SH-124L,394 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Series | OMIH, OEG | OMIH, OEG | OMIH, OEG | OMIH, OEG | OMIH, OEG |
| Packaging | Tube | Bulk | Tube | Bulk | Tube |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 5VDC | 12VDC | 12VDC | 48VDC | 24VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPST-NO (1 Form A) | - | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A | 16 A | 16 A | 16 A | 16 A |
| Switching Voltage | 250VAC, 30VDC | 250VAC, 30VDC | 250VAC, 30VDC | 250VAC, 30VDC | 250VAC, 30VDC |
| Load - Max Switching | - | - | - | - | - |
| Coil Current | 108 mA | 44.4 mA | 44.4 mA | 10.9 mA | 21.8 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | - | - | - | Class A | - |
| Must Operate Voltage | 3.75 VDC | 9 VDC | 9 VDC | 36 VDC | 18 VDC |
| Must Release Voltage | 0.25 VDC | 0.6 VDC | 0.6 VDC | 2.4 VDC | 1.2 VDC |
| Operate Time | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms |
| Release Time | 8 ms | 8 ms | 8 ms | 8 ms | 8 ms |
| Operating Temperature | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C | -30°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver (Ag) | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
