BOE NV101WXM-N01
- Part No.:
- NV101WXM-N01
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 10.1" IPS LCM 1280×800 400nits WLED LVDS 40pins BOE0950
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
NV101WXM-N01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 10.1"
- TNVAIPS:
- IPS
- Resolution:
- 1280×800
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 16.7M
- Outline Size:
- 228.3(W)×149.05(H) ×4.7(D) mm
- Treatment:
- Antireflection
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10)
- Response Time:
- 30 (Typ.)(Tr+Td)
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 48% NTSC
- Mass:
- 400g (Max.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |

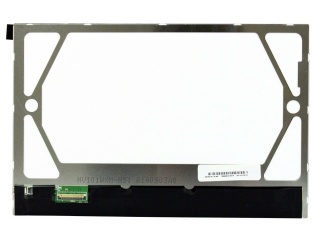

| Part Number | NV101WXM-N01 | NV101WXM-N51 |
| Manufacturer | BOE | BOE |
| Panel Size | 10.1" | 10.1" |
| TNVAIPS | IPS | IPS |
| Resolution | 1280×800 | 1280×800 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 |
| Colors | 16.7M | 16.7M |
| Outline Size | 228.3(W)×149.05(H) ×4.7(D) mm | 228.21(W)×148.86(H)×4.59(D) mm |
| Treatment | Antireflection | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Brightness | 400 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) |
| View Direction | Symmetry | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 30 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) |
| Best View on | Symmetry | |
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.7M 48% NTSC | 16.7M 50% NTSC |
| Mass | 400g (Max.) | 145g (Max.) |
| Used for | Pad & Tablet | |
| Touch Screen | Without | Without |
| Refresh Rate | 60Hz | 60Hz |
