u-blox NORA-B106-00B
- Part No.:
- NORA-B106-00B
- Manufacturer:
- u-blox
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Description:
- RF TXRX MOD 802.15.4 BT TH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
NORA-B106-00B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- u-blox
- Series:
- NORA-B1
- Package/Case:
- Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- 802.15.4, Bluetooth
- Protocol:
- Bluetooth v5.2, Thread, Zigbee®
- Modulation:
- -
- Frequency:
- 2.4GHz
- Data Rate:
- 2Mbps
- Power - Output:
- 3dBm
- Sensitivity:
- -97.5dBm
- Serial Interfaces:
- ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB
- Antenna Type:
- PCB Trace
- Utilized IC / Part:
- nRF5340
- Memory Size:
- 1MB Flash, 512kB RAM
- Voltage - Supply:
- 1.7V ~ 5.5V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 105°C
| Image |  |
 |
 |
|
 |

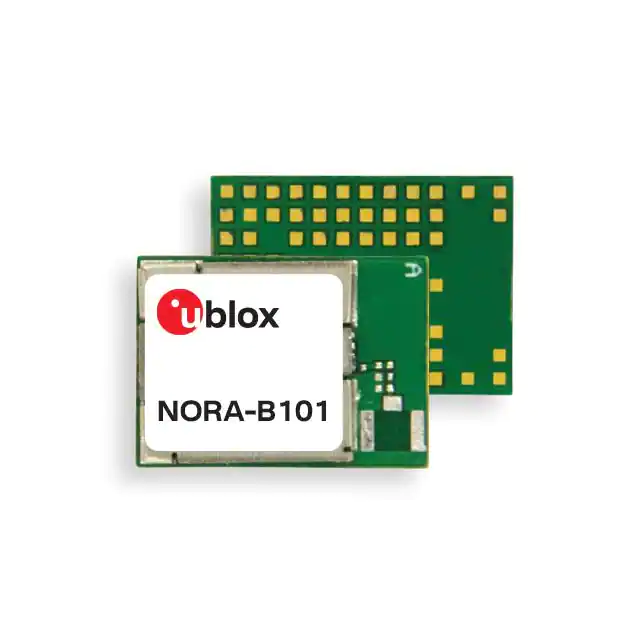

| Part Number | NORA-B106-00B | NORA-B126-00B | NORA-W101-00B | NORA-W106-00B | NORA-B101-00B |
| Manufacturer | u-blox | u-blox | u-blox | u-blox | u-blox |
| Series | NORA-B1 | NORA-B1 | NORA-W10 | NORA-W10 | NORA-B1 |
| Package/Case | Module | 94-SMD Module | 82-SMD Module | 82-SMD Module | Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth/ANT | Bluetooth, WiFi | Bluetooth, WiFi | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.2, Thread, Zigbee® | Bluetooth v5.2, Thread, Zigbee® | 802.11b/g/n, Bluetooth v5.0 | 802.11b/g/n, Bluetooth v5.0 | Bluetooth v5.2, Thread, Zigbee® |
| Modulation | - | - | CCK, DSSS, OFDM | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 2Mbps | 2Mbps | 54Mbps | 150Mbps | 2Mbps |
| Power - Output | 3dBm | 15dBm | 17dBm | 18dBm | 3dBm |
| Sensitivity | -97.5dBm | -109dBm | -98dBm | -96dBm | -97.5dBm |
| Serial Interfaces | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | ADC, GPIO, I2S, I2C, SPI, PDM, PWM, UART, USB | I2C, SDIO, SPI, UART | I2C, I2S, SPI, UART, USB | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB |
| Antenna Type | PCB Trace | PCB Trace | Antenna Not Included | PCB Trace | Antenna Not Included |
| Utilized IC / Part | nRF5340 | nRF5340 | ESP32-S3 | ESP32-S3 | nRF5340 |
| Memory Size | 1MB Flash, 512kB RAM | 1MB Flash, 512kB RAM | 8MB Flash, 512kB SRAM | 8MB Flash, 512kB RAM | 1MB Flash, 512kB RAM |
| Voltage - Supply | 1.7V ~ 5.5V | 1.7V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 1.7V ~ 5.5V |
| Current - Receiving | - | 3.7mA | 95mA | - | - |
| Current - Transmitting | - | 4.1mA ~ 5.3mA | 130mA ~ 190mA | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
