NLT NL8060BC26-35F
- Part No.:
- NL8060BC26-35F
- Manufacturer:
- NLT
- Category:
- TFT-LCD Panel
- Package:
- Description:
- NLT 10.4" TN LCM 800×600 800nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
NL8060BC26-35F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NLT
- Panel Size:
- 10.4"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- CR:
- 1900/2/6 12:01:00
- Viewing Angle:
- 80/80/80/80
- Colors:
- 262K/16.7M
- Outline Size:
- 243(W)×185.1(H)×11(D) mm
- Treatment:
- Clear, Hard coating (3H)
- Brightness:
- 800 cd/m² (Typ.)
- Contrast Ratio:
- 900:1 (Typ.) (TM)
- View Direction:
- 6 o'clock
- Viewing Angle:
- 80/80/80/80 (Typ.)(CR≥10)
- Response Time:
- 3/15 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 40% NTSC
- Mass:
- 475/500g (Typ./Max.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

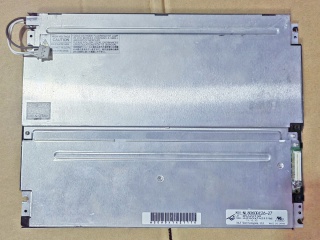

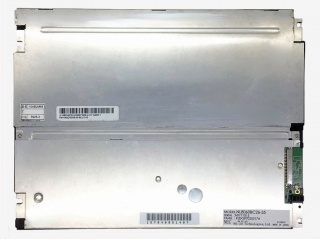

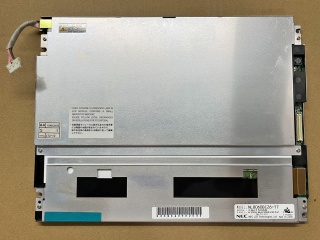

| Part Number | NL8060BC26-35F | NL8060BC26-35D | NL8060BC26-35 | NL8060BC26-17 | NL8060BC26-27 |
| Manufacturer | NLT | NLT | NLT | NLT | NLT |
| Panel Size | 10.4" | 10.4" | 10.4" | 10.4" | 10.4" |
| TNVAIPS | TN | TN | TN | TN | IPS |
| Resolution | 800×600 | 800×600 | 800×600 | 800×600 | 800×600 |
| CR | 1900/2/6 12:01:00 | 1900/2/6 12:01:00 | 1900/2/6 12:01:00 | 1900/1/12 12:01:00 | 1900/1/29 4:01:00 |
| Viewing Angle | 80/80/80/80 | 80/80/80/80 | 80/80/80/80 | 50/50/35/45 | 88/88/88/88 |
| Colors | 262K/16.7M | 262K/16.7M | 262K/16.7M | 262K | 262K |
| Outline Size | 243(W)×185.1(H)×11(D) mm | 243(H)×185.1(V) ×11(D) mm | 243(W)×185.1(H) ×11(D) mm | 243 × 185.1 × 11.5 (H×V×D) | 243(W)×185.1(H)×11(D) mm |
| Treatment | Clear, Hard coating (3H) | Antiglare, Hard coating (3H) | Clear, Hard coating (3H) | Hard coating (3H), Antireflection | |
| Brightness | 800 cd/m² (Typ.) | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) | 280 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) | 900:1 (Typ.) (TM) | 900:1 (Typ.) (TM) | 300 : 1 (Typ.) (TM) | |
| View Direction | 6 o'clock | 6 o'clock | |||
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 50/50/35/45 (Typ.)(CR≥10) (Left / Right / Up / Down) | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 3/15 (Typ.)(Tr/Td) | 3/15 (Typ.)(Tr/Td) | 3/15 (Typ.)(Tr/Td) | 15/65 (Typ.)(Tr/Td) ms | |
| Best View on | 6 o'clock | 6 o'clock | Symmetry | ||
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 262K/16.7M 40% NTSC | 262K/16.7M 40% NTSC | 262K/16.7M 40% NTSC | 262K 43% NTSC | 262K 40% NTSC |
| Mass | 475/500g (Typ./Max.) | 475/500g (Typ./Max.) | 475/500g (Typ./Max.) | 520/550g (Typ./Max.) | 475/500g (Typ./Max.) |
| Used for | Industrial | Industrial | Industrial | ||
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
