Home > Products > Lcd Display > TFT-LCD Panel

Innolux N101ICG-L11

Name: N101ICG-L11
Brand: Innolux
SKU: N101ICG-L11
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: N101ICG-L11

Manufacturer:: Innolux

Category:: TFT-LCD Panel

Package:

Description:: Innolux 10.1" IPS LCM 1280×800 350nits WLED LVDS 40pins CMN1041

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

N101ICG-L11 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Innolux

Panel Size:: 10.1"

TNVAIPS:: IPS

Resolution:: 1280×800

CR:: 1900/2/2 8:01:00

Viewing Angle:: 85/85/85/85

Colors:: 262K

Outline Size:: 227.42(H)×147.69(V) ×4.85(D) mm

Treatment:

Brightness:: 350 cd/m² (Typ.)

Contrast Ratio:

View Direction:: Symmetry

Viewing Angle:: 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 262K 50% NTSC

Mass:: 120/135g (Typ./Max.)

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

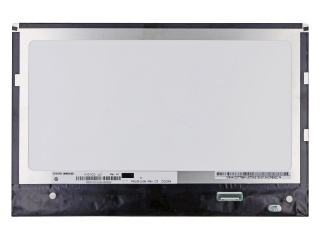

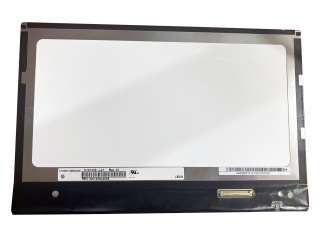

Part Number	N101ICG-L11	N101ICG-L21 Rev.A1	N101ICG-L21 Rev.C1	N101ICG-L21 Rev.C2	N101ICG-L21 Rev.C3
Manufacturer	Innolux	Innolux	Innolux	Innolux	Innolux
Panel Size	10.1"	10.1"	10.1"	10.1"	10.1"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1280×800	1280×800	1280×800	1280×800	1280×800
CR	1900/2/2 8:01:00	1900/2/2 8:01:00	1900/2/2 8:01:00	1900/2/2 8:01:00	1900/2/2 8:01:00
Viewing Angle	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85
Colors	262K	262K	262K	262K	262K
Outline Size	227.42(H)×147.69(V) ×4.85(D) mm	227.42(W)×147.69(H) ×4.85(D) mm	227.42(H)×147.69(V) ×4.85(D) mm	227.42(W)×147.69(H)×4.85(D) mm	227.42(W)×147.69(H) ×4.85(D) mm
Treatment		Glare (Haze 0%), Hard coating (3H)	Glare (Haze 0%), Hard coating (3H)	Glare (Haze 0%), Hard coating (3H)	Glare (Haze 0%), Hard coating (3H)
Brightness	350 cd/m² (Typ.)	350 cd/m² (Typ.)	350 cd/m² (Typ.)	350 cd/m² (Typ.)	350 cd/m² (Typ.)
Contrast Ratio		800:1 (Typ.) (TM)	800:1 (Typ.) (TM)	800:1 (Typ.) (TM)	800:1 (Typ.) (TM)
View Direction	Symmetry		Symmetry	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10)
Response Time		14/11 (Typ.)(Tr/Td)	14/11 (Typ.)(Tr/Td)	14/11 (Typ.)(Tr/Td)	14/11 (Typ.)(Tr/Td)
Best View on		Symmetry			Symmetry
Work Mode		AAS, Normally Black, Transmissive	AAS, Normally Black, Transmissive	AAS, Normally Black, Transmissive	AAS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K 50% NTSC	262K 50% NTSC	262K 50% NTSC	262K 50% NTSC	262K 50% NTSC
Mass	120/135g (Typ./Max.)	120/135g (Typ./Max.)	120/135g (Typ./Max.)	120/135g (Typ./Max.)	120/135g (Typ./Max.)
Used for			Pad & Tablet	Pad & Tablet
Touch Screen		Without	Without	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz
