Omron Automation and Safety MY4N-D2-GS-R DC220

Name: MY4N-D2-GS-R DC220
Brand: Omron Automation and Safety
SKU: MY4N-D2-GS-R DC220
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: MY4N-D2-GS-R DC220

Manufacturer:: Omron Automation and Safety

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: MY4N-D2-GS-R DC220.pdf

Description:: RELAY GEN PURPOSE

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

MY4N-D2-GS-R DC220 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Automation and Safety

Series:: MY

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Socketable

Coil Voltage:: 220VDC

Contact Form:: 4PDT (4 Form C)

Contact Rating (Current):: 6 A

Switching Voltage:: 250VAC, 220VDC - Max

Load - Max Switching:: 1500VA, 1320W

Coil Current:: 3.6 mA

Coil Type:: Non Latching

Features:: Diode, Lighted Indicator, Mechanical Indicator

Termination Style:: Plug In, Quick Connect - 0.110" (2.8mm)

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: 176 VDC

Must Release Voltage:: 22 VDC

Operate Time:: 20 ms

Release Time:: 20 ms

Operating Temperature:: -40°C ~ 70°C

Contact Material:: Silver (Ag), Gold (Au)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

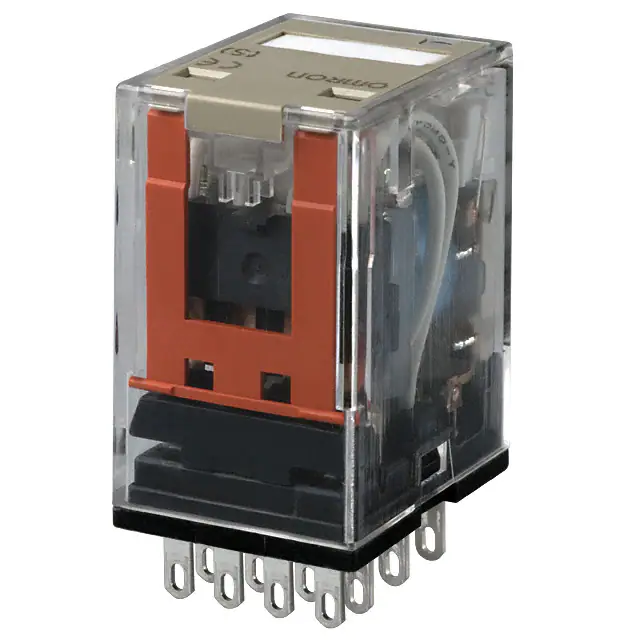

Part Number	MY4N-D2 DC24 (S)	MY4N-GS-R DC24	MY4N-GS-R DC12	MY4N AC110/120 (S)	MY4N-GS-R AC24
Manufacturer	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety
Series	MY	MY	MY	MY	MY
Packaging	Bulk	Bulk	Bulk	Tray	Bulk
Product Status	Last Time Buy	Active	Active	Last Time Buy	Active
Mounting Type	Socketable	Socketable	Socketable	Socketable	Socketable
Coil Voltage	24VDC	24VDC	12VDC	120VAC	24VAC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)
Contact Rating (Current)	3 A	6 A	6 A	3 A	6 A
Switching Voltage	250VAC, 125VDC - Max	250VAC, 220VDC - Max	250VAC, 220VDC - Max	250VAC, 125VDC - Max	250VAC, 220VDC - Max
Load - Max Switching	750VA, 375W	1500VA, 1320W	1500VA, 1320W	750VA, 375W	1500VA, 1320W
Coil Current	36.3 mA	36.3 mA	72.7 mA	27.1 mA	133.3 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	Diode, Lighted Indicator	Lighted Indicator, Mechanical Indicator	Lighted Indicator, Mechanical Indicator	Lighted Indicator	Lighted Indicator, Mechanical Indicator
Termination Style	Plug In	Plug In, Quick Connect - 0.110" (2.8mm)	Plug In, Quick Connect - 0.110" (2.8mm)	Plug In	Plug In, Quick Connect - 0.110" (2.8mm)
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	19.2 VDC	19.2 VDC	9.6 VDC	96 VAC	19.2 VAC
Must Release Voltage	2.4 VDC	2.4 VDC	1.2 VDC	36 VAC	7.2 VAC
Operate Time	20 ms	20 ms	20 ms	20 ms	20 ms
Release Time	20 ms	20 ms	20 ms	20 ms	20 ms
Operating Temperature	-55°C ~ 70°C	-40°C ~ 70°C	-40°C ~ 70°C	-55°C ~ 70°C	-40°C ~ 70°C
Contact Material	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
