Multi-Tech Systems Inc. MTQN-MNG1-B02.R3
- Part No.:
- MTQN-MNG1-B02.R3
- Manufacturer:
- Multi-Tech Systems Inc.
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Datasheet:
-
MTQN-MNG1-B02.R3.pdf
- Description:
- RF TXRX MODULE CELL CHAS MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MTQN-MNG1-B02.R3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Multi-Tech Systems Inc.
- Series:
- MultiTech Dragonfly™ Nano
- Package/Case:
- Module
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- -
- RF Family/Standard:
- Cellular
- Protocol:
- LTE
- Modulation:
- -
- Frequency:
- 700MHz, 850MHz, 1.7GHz, 1.9GHz
- Data Rate:
- 375kbps
- Power - Output:
- -
- Sensitivity:
- -
- Serial Interfaces:
- I2C, SPI, UART, USB
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- -
- Memory Size:
- 1MB Flash, 128kB SRAM
- Voltage - Supply:
- 3.3V, 5V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Chassis Mount
- Operating Temperature:
- -40°C ~ 85°C

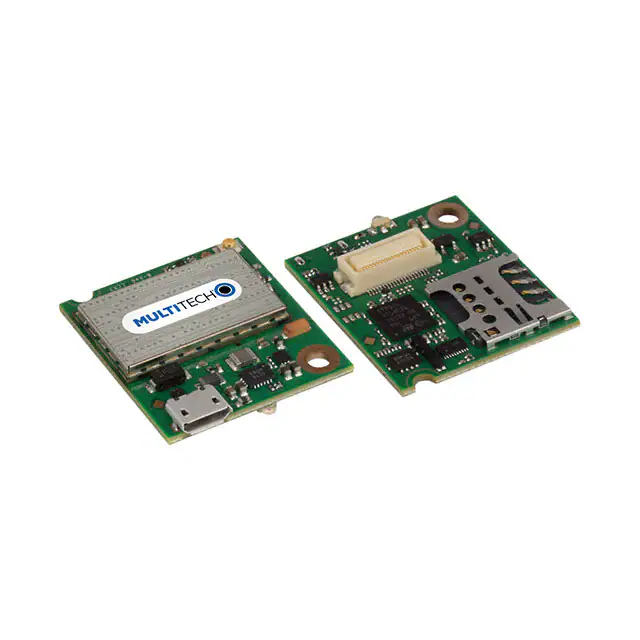

| Image |  |
|
|
 |
|
| Part Number | MTQN-MNG1-B02.R3 | MTQN-MNG1-B01.R3 | MTQN-MNG1-B02.R3-SP | MTQN-MNG1-B02.R1-SP | MTQN-MNG1-B01.R3-SP |
| Manufacturer | Multi-Tech Systems Inc. | Multi-Tech Systems Inc. | Multi-Tech Systems Inc. | Multi-Tech Systems Inc. | Multi-Tech Systems Inc. |
| Series | MultiTech Dragonfly™ Nano | MultiTech Dragonfly™ Nano | MultiTech Dragonfly™ Nano | MultiTech Dragonfly™ Nano | MultiTech Dragonfly™ Nano |
| Package/Case | Module | Module | Module | Module | Module |
| Packaging | Tray | Tray | Bulk | Bag | Bulk |
| Product Status | Active | Obsolete | Active | Obsolete | Obsolete |
| Programmable | - | - | - | Not Verified | - |
| RF Family/Standard | Cellular | Cellular | Cellular | Cellular | Cellular |
| Protocol | LTE | LTE | LTE | LTE | LTE |
| Modulation | - | - | - | - | - |
| Frequency | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 700MHz, 850MHz, 1.7GHz, 1.9GHz |
| Data Rate | 375kbps | 375kbps | 375kbps | 375kbps | 375kbps |
| Power - Output | - | - | - | - | - |
| Sensitivity | - | - | - | - | - |
| Serial Interfaces | I2C, SPI, UART, USB | I2C, SPI, UART, USB | I2C, SPI, UART, USB | UART, USB | I2C, SPI, UART, USB |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included, U.FL | Antenna Not Included |
| Utilized IC / Part | - | - | - | STM32L471QG | - |
| Memory Size | 1MB Flash, 128kB SRAM | 1MB Flash, 128kB SRAM | 1MB Flash, 128kB SRAM | - | 1MB Flash, 128kB SRAM |
| Voltage - Supply | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
