Microchip Technology MEC1701Q-B2-TN
- Part No.:
- MEC1701Q-B2-TN
- Manufacturer:
- Microchip Technology
- Category:
- Application Specific Microcontrollers
- Package:
- 169-WFBGA
- Datasheet:
-
MEC1701Q-B2-TN.pdf
- Description:
- EMBEDDED CONTROLLER 480 KB TOTAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MEC1701Q-B2-TN Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- -
- Package/Case:
- 169-WFBGA
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- Applications:
- Keyboard and Embedded Controller
- Core Processor:
- ARM® Cortex®-M4F
- Program Memory Type:
- -
- Controller Series:
- MEC170x
- RAM Size:
- 480K x 8
- Interface:
- ACPI, eSPI, I2C, LPC, PECI, PS/2, QSPI, SPI, UART
- Number of I/O:
- 148
- Voltage - Supply:
- 1.71V ~ 3.465V
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 169-WFBGA (11x11)
| Image |  |
 |
 |

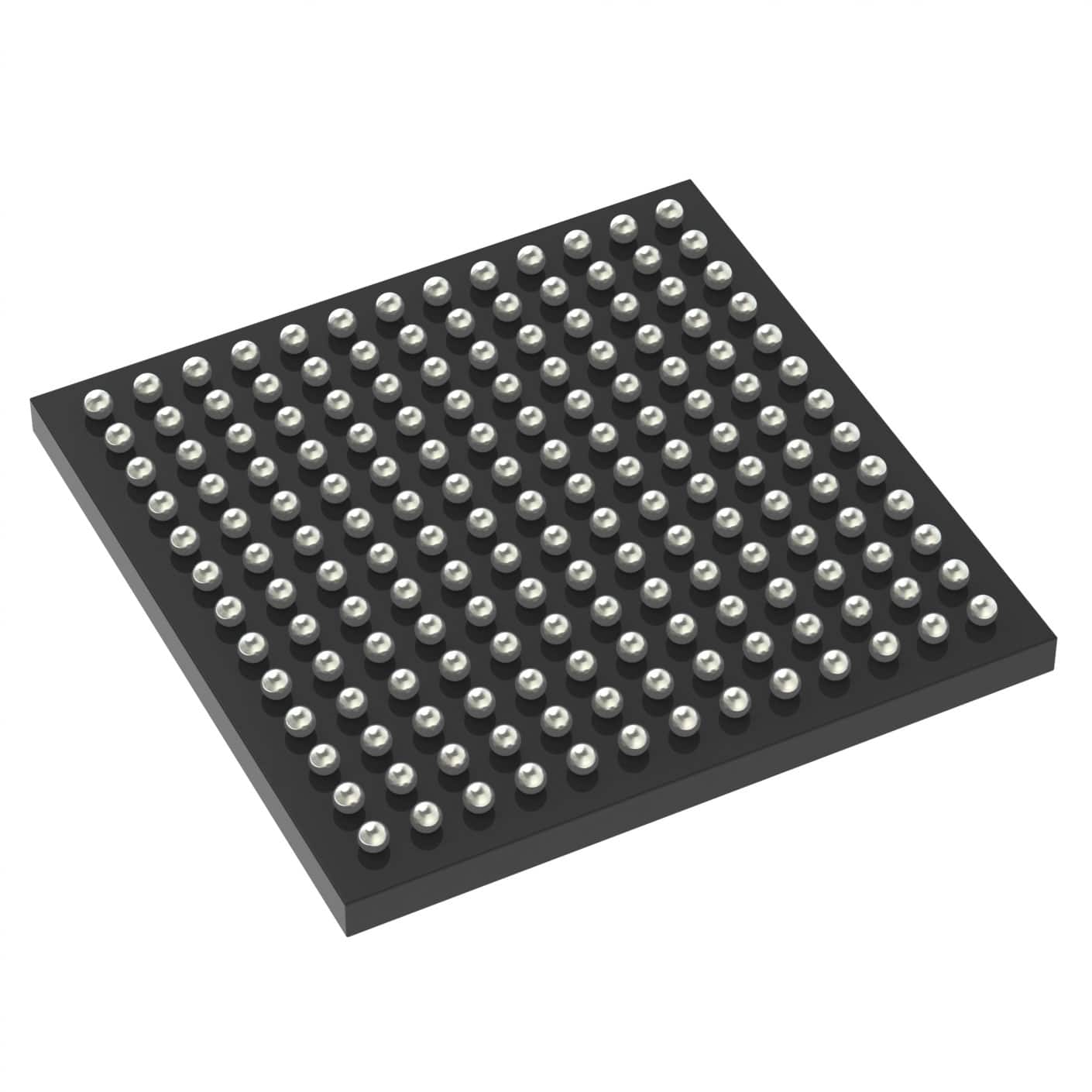

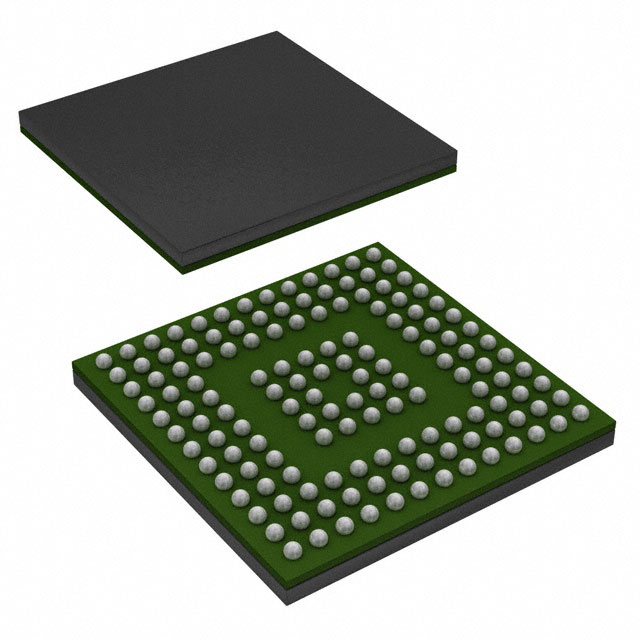

| Part Number | MEC1701Q-C2-SZ | MEC1701Q-C2-TN | MEC1701Q-B2-TN |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | - | - | - |
| Package/Case | 144-WFBGA | 169-WFBGA | 169-WFBGA |
| Packaging | Tray | Tray | Tray |
| Product Status | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified |
| Applications | Keyboard and Embedded Controller | Keyboard and Embedded Controller | Keyboard and Embedded Controller |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4F |
| Program Memory Type | - | - | - |
| Controller Series | MEC170x | MEC170x | MEC170x |
| RAM Size | 480K x 8 | 480K x 8 | 480K x 8 |
| Interface | ACPI, EBI/EMI, eSPI, I2C, LPC, PECI, PS/2, QSPI, SPI | ACPI, EBI/EMI, eSPI, I2C, LPC, PECI, PS/2, QSPI, SPI | ACPI, eSPI, I2C, LPC, PECI, PS/2, QSPI, SPI, UART |
| Number of I/O | 123 | 148 | 148 |
| Voltage - Supply | 1.71V ~ 3.465V | 1.71V ~ 3.465V | 1.71V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C (TA) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 144-WFBGA (9x9) | 169-WFBGA (11x11) | 169-WFBGA (11x11) |
