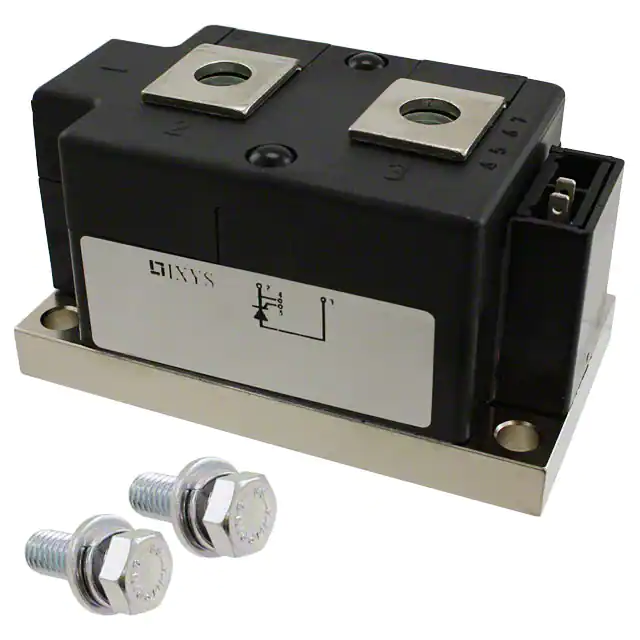

IXYS MCO50-16IO1

Product attributes

Attribute value

Manufacturer:

IXYS

Series:

-

Package/Case:

SOT-227-4, miniBLOC

Packaging:

Tube

Product Status:

Active

Structure:

Single

Number of SCRs, Diodes:

1 SCR

Voltage - Off State:

1.6 kV

Current - On State (It (AV)) (Max):

54 A

Current - On State (It (RMS)) (Max):

85 A

Voltage - Gate Trigger (Vgt) (Max):

1.4 V

Current - Gate Trigger (Igt) (Max):

80 mA

Current - Non Rep. Surge 50, 60Hz (Itsm):

740A, 800A

Current - Hold (Ih) (Max):

100 mA

Operating Temperature:

-40°C ~ 150°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Chassis Mount
