NXP USA Inc. MCIMX6X3EVK10AB
- Part No.:
- MCIMX6X3EVK10AB
- Manufacturer:
- NXP USA Inc.
- Category:
- Microprocessors
- Package:
- 400-LFBGA
- Datasheet:
-
MCIMX6X3EVK10AB.pdf
- Description:
- IC MPU I.MX6SX 1GHZ 400MAPBGA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MCIMX6X3EVK10AB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NXP USA Inc.
- Package/Case:
- 400-LFBGA
- Series:
- i.MX6SX
- Packaging:
- Tray
- Product Status:
- Not For New Designs
- Core Processor:
- ARM® Cortex®-A9, ARM® Cortex®-M4
- Number of Cores/Bus Width:
- 2 Core, 32-Bit
- Speed:
- 227MHz, 1GHz
- Co-Processors/DSP:
- Multimedia; NEON™ MPE
- RAM Controllers:
- LPDDR2, LVDDR3, DDR3
- Graphics Acceleration:
- Yes
- Display & Interface Controllers:
- Keypad, LCD, LVDS
- Ethernet:
- 10/100/1000Mbps (2)
- SATA:
- -
- USB:
- USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2)
- Voltage - I/O:
- 1.8V, 2.5V, 2.8V, 3.15V
- Operating Temperature:
- -20°C ~ 105°C (TJ)
- Grade:
- -
- Qualification:
- -
- Security Features:
- A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 400-MAPBGA (14x14)
- Additional Interfaces:
- AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, UART

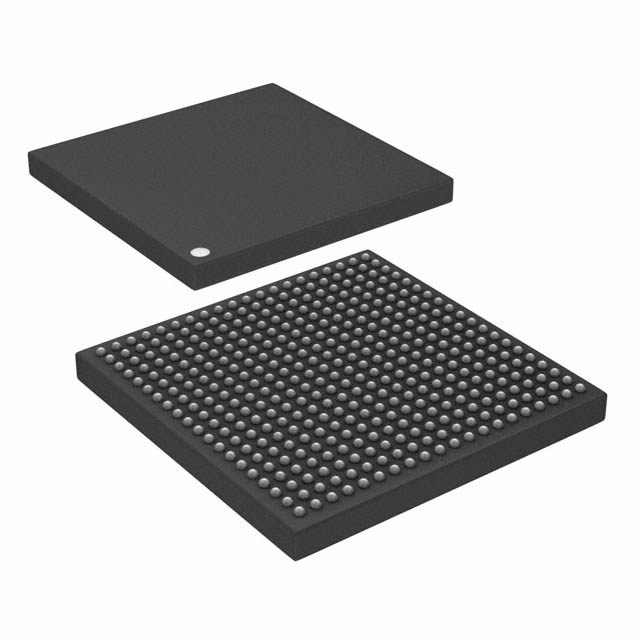

| Image |  |
 |
|
| Part Number | MCIMX6X3EVK10AB | MCIMX6X3EVK10ABR | MCIMX6X3EVK10AB |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP Semiconductors |
| Package/Case | 400-LFBGA | 400-LFBGA | 400-LFBGA |
| Series | i.MX6SX | i.MX6SX | i.MX6SX |
| Packaging | Tray | Tape & Reel (TR) | Bulk |
| Product Status | Not For New Designs | Not For New Designs | Active |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 | ARM® Cortex®-A9, ARM® Cortex®-M4 | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Number of Cores/Bus Width | 2 Core, 32-Bit | 2 Core, 32-Bit | 2 Core, 32-Bit |
| Speed | 227MHz, 1GHz | 227MHz, 1GHz | 1GHz, 227MHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE | Multimedia; NEON™ MPE | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 | LPDDR2, LVDDR3, DDR3 | DDR3, DDR3L, LPDDR2 |
| Graphics Acceleration | Yes | Yes | Yes |
| Display & Interface Controllers | Keypad, LCD, LVDS | Keypad, LCD, LVDS | Keypad, LCD |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) |
| SATA | - | - | - |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.15V | 1.8V, 2.5V, 2.8V, 3.15V | 1.8V, 2.5V, 2.8V, 3.15V |
| Operating Temperature | -20°C ~ 105°C (TJ) | -20°C ~ 105°C (TJ) | -20°C ~ 105°C (TJ) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 400-MAPBGA (14x14) | 400-MAPBGA (14x14) | 400-MAPBGA (14x14) |
| Additional Interfaces | AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, UART | AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, UART | CANbus, I2C, I2S, MLB, MMC/SD/SDIO, PCIe, SAI, SPDIF, SPI, SSI, UART, VADC |
