NXP USA Inc. MCIMX515DJM8C
- Part No.:
- MCIMX515DJM8C
- Manufacturer:
- NXP USA Inc.
- Category:
- Microprocessors
- Package:
- 529-LFBGA
- Datasheet:
-
MCIMX515DJM8C.pdf
- Description:
- IC MPU I.MX51 800MHZ 529BGA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MCIMX515DJM8C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NXP USA Inc.
- Package/Case:
- 529-LFBGA
- Series:
- i.MX51
- Packaging:
- Tray
- Product Status:
- Active
- Core Processor:
- ARM® Cortex®-A8
- Number of Cores/Bus Width:
- 1 Core, 32-Bit
- Speed:
- 800MHz
- Co-Processors/DSP:
- Multimedia; NEON™ SIMD
- RAM Controllers:
- LPDDR, DDR2
- Graphics Acceleration:
- Yes
- Display & Interface Controllers:
- Keypad, LCD
- Ethernet:
- 10/100Mbps (1)
- SATA:
- -
- USB:
- USB 2.0 (3), USB 2.0 + PHY (1)
- Voltage - I/O:
- 1.2V, 1.875V, 2.775V, 3.0V
- Operating Temperature:
- -20°C ~ 85°C (TC)
- Grade:
- -
- Qualification:
- -
- Security Features:
- ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 529-BGA (19x19)
- Additional Interfaces:
- 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART

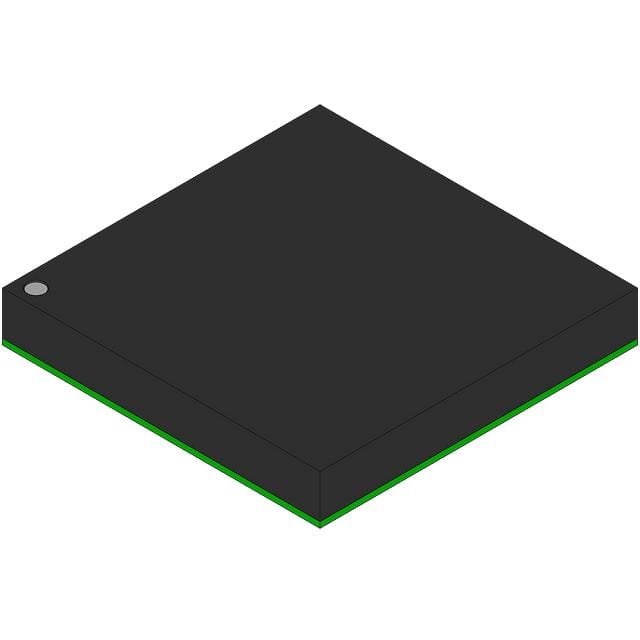

| Image |  |
 |
|
|
| Part Number | MCIMX515DJM8C | MCIMX515DJM8CR2 | MCIMX515DJM8CR2 | MCIMX515DJM8C |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP Semiconductors |
| Package/Case | 529-LFBGA | 529-LFBGA | 529-LFBGA | 529-LFBGA |
| Series | i.MX51 | i.MX51 | i.MX51 | - |
| Packaging | Tray | Tape & Reel (TR) | Bulk | Bulk |
| Product Status | Active | Active | Active | Obsolete |
| Core Processor | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 800MHz | 800MHz | 800MHz | 800MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR, DDR2 | LPDDR, DDR2 | LPDDR, DDR2 | DDR2, LPDDR2 |
| Graphics Acceleration | Yes | Yes | Yes | Yes |
| Display & Interface Controllers | Keypad, LCD | Keypad, LCD | Keypad, LCD | Keypad, LCD |
| Ethernet | 10/100Mbps (1) | 10/100Mbps (1) | 10/100Mbps (1) | 10/100Mbps (1) |
| SATA | - | - | - | - |
| USB | USB 2.0 (3), USB 2.0 + PHY (1) | USB 2.0 (3), USB 2.0 + PHY (1) | USB 2.0 (3), USB 2.0 + PHY (1) | USB 2.0 (3), USB 2.0 + PHY (1) |
| Voltage - I/O | 1.2V, 1.875V, 2.775V, 3.0V | 1.2V, 1.875V, 2.775V, 3.0V | 1.2V, 1.875V, 2.775V, 3.0V | 1.2V, 1.875V, 2.775V, 3V |
| Operating Temperature | -20°C ~ 85°C (TC) | -20°C ~ 85°C (TC) | -20°C ~ 85°C (TC) | -20°C ~ 85°C (TC) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 529-BGA (19x19) | 529-BGA (19x19) | 529-BGA (19x19) | 529-BGA Case 2017 (19x19) |
| Additional Interfaces | 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART | 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART | 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART | 1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART |
