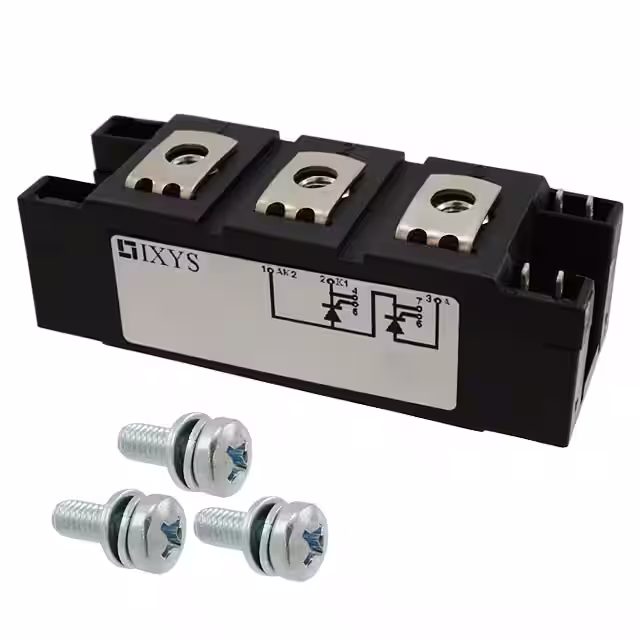

IXYS MCD162-16IO1

Product attributes

Attribute value

Manufacturer:

IXYS

Series:

-

Package/Case:

Y4-M6

Packaging:

Box

Product Status:

Active

Structure:

Series Connection - SCR/Diode

Number of SCRs, Diodes:

1 SCR, 1 Diode

Voltage - Off State:

1.6 kV

Current - On State (It (AV)) (Max):

190 A

Current - On State (It (RMS)) (Max):

300 A

Voltage - Gate Trigger (Vgt) (Max):

2.5 V

Current - Gate Trigger (Igt) (Max):

150 mA

Current - Non Rep. Surge 50, 60Hz (Itsm):

6000A, 6400A

Current - Hold (Ih) (Max):

200 mA

Operating Temperature:

-40°C ~ 125°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Chassis Mount
