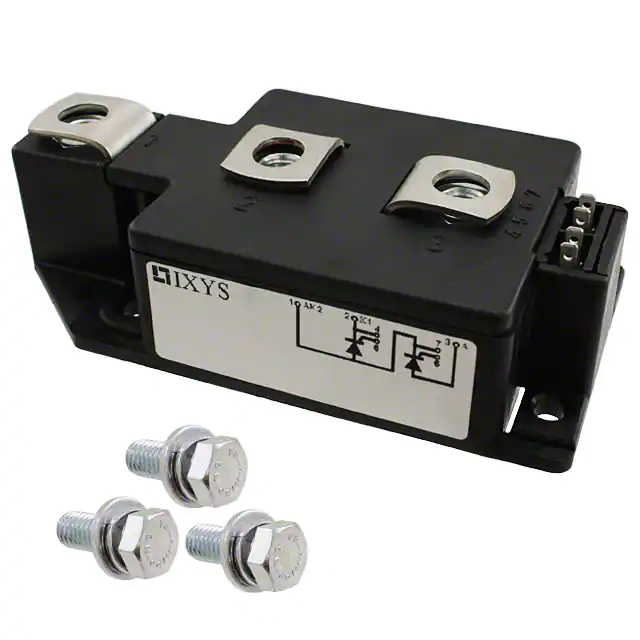

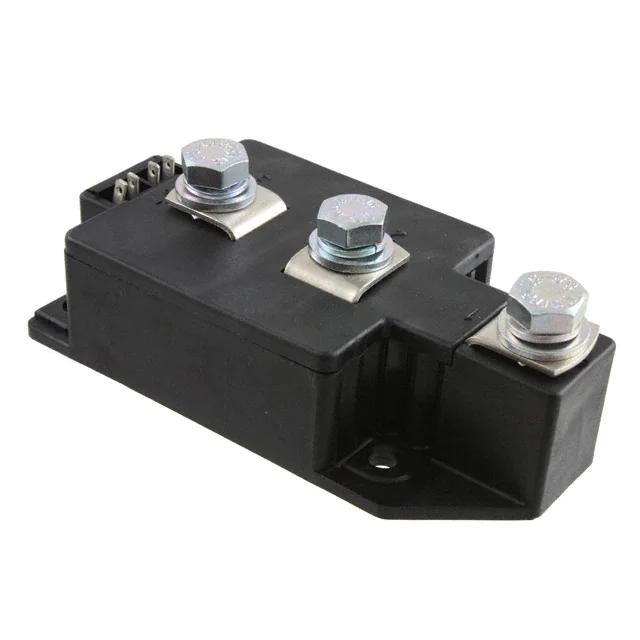

IXYS MCC310-18IO1

Product attributes

Attribute value

Manufacturer:

IXYS

Series:

-

Package/Case:

Module

Packaging:

Bulk

Product Status:

Active

Structure:

Series Connection - All SCRs

Number of SCRs, Diodes:

2 SCRs

Voltage - Off State:

1.8 kV

Current - On State (It (AV)) (Max):

320 A

Current - On State (It (RMS)) (Max):

500 A

Voltage - Gate Trigger (Vgt) (Max):

2 V

Current - Gate Trigger (Igt) (Max):

150 mA

Current - Non Rep. Surge 50, 60Hz (Itsm):

9200A, 9800A

Current - Hold (Ih) (Max):

150 mA

Operating Temperature:

-40°C ~ 140°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Chassis Mount
