Quectel MC60CA-04-AMT
- Part No.:
- MC60CA-04-AMT
- Manufacturer:
- Quectel
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Description:
- RF TXRX MOD CELL NAV SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MC60CA-04-AMT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Quectel
- Series:
- MC60
- Package/Case:
- Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Cellular, Navigation
- Protocol:
- BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS
- Modulation:
- -
- Frequency:
- 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz
- Data Rate:
- 85.6kbps
- Power - Output:
- -
- Sensitivity:
- -167dBm
- Serial Interfaces:
- ADC, GPIO, PCM, UART
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 3.3V ~ 4.6V
- Current - Receiving:
- 0.9mA ~ 1.2mA
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -35°C ~ 75°C

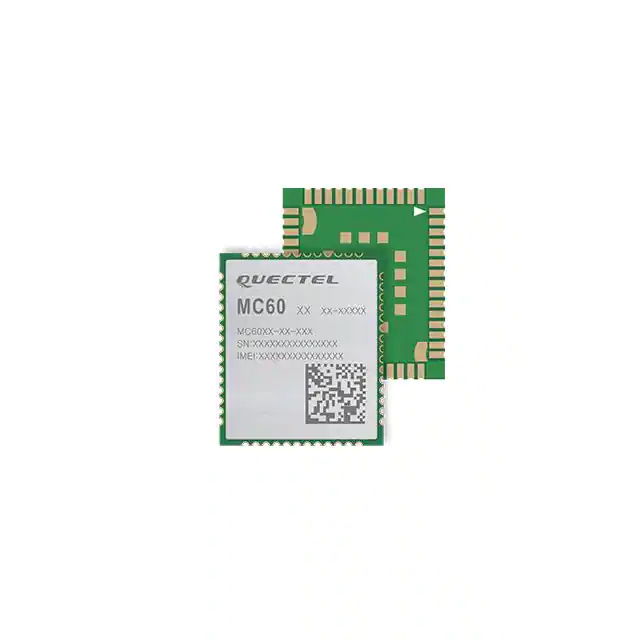

| Image |  |
 |
|
|
| Part Number | MC60CA-04-STD | MC60CA-04-AMT | MC60CA-04-CTK | MC60CA-04-PST |
| Manufacturer | Quectel | Quectel | Quectel | Quectel |
| Series | - | MC60 | MC60 | MC60 |
| Package/Case | Module | Module | Module | Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation |
| Protocol | BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS | BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS | BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS | BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS |
| Modulation | - | - | - | - |
| Frequency | 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz |
| Data Rate | 85.6kbps | 85.6kbps | 85.6kbps | 85.6kbps |
| Power - Output | - | - | - | - |
| Sensitivity | -167dBm | -167dBm | -167dBm | -167dBm |
| Serial Interfaces | ADC, GPIO, PCM, UART | ADC, GPIO, PCM, UART | ADC, GPIO, PCM, UART | ADC, GPIO, PCM, UART |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included |
| Utilized IC / Part | MT2503DV/B | - | - | - |
| Memory Size | - | - | - | - |
| Voltage - Supply | 3.3V ~ 4.6V | 3.3V ~ 4.6V | 3.3V ~ 4.6V | 3.3V ~ 4.6V |
| Current - Receiving | 1.2mA | 0.9mA ~ 1.2mA | 0.9mA ~ 1.2mA | 0.9mA ~ 1.2mA |
| Current - Transmitting | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -35°C ~ 75°C | -35°C ~ 75°C | -35°C ~ 75°C | -35°C ~ 75°C |
