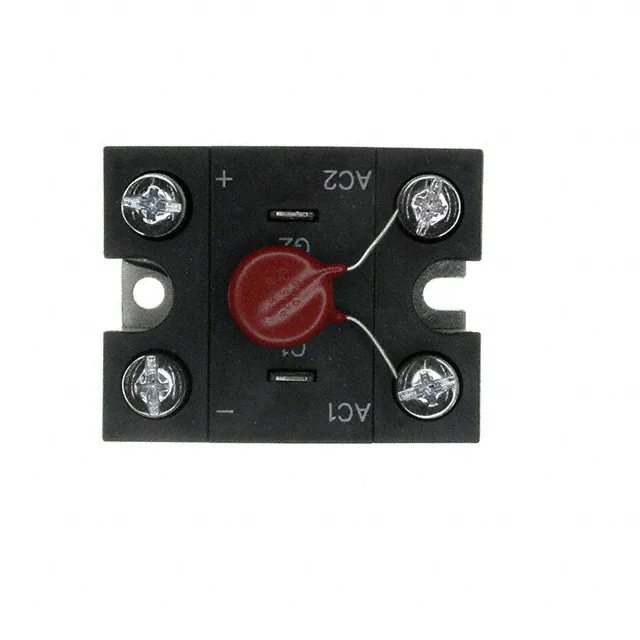

Sensata-Crydom M505012F

Product attributes

Attribute value

Manufacturer:

Sensata-Crydom

Series:

M50

Package/Case:

Module

Packaging:

Bulk

Product Status:

Active

Structure:

Bridge, Single Phase - SCRs/Diodes (Layout 1)

Number of SCRs, Diodes:

2 SCRs, 2 Diodes

Voltage - Off State:

600 V

Current - On State (It (AV)) (Max):

-

Current - On State (It (RMS)) (Max):

-

Voltage - Gate Trigger (Vgt) (Max):

3 V

Current - Gate Trigger (Igt) (Max):

150 mA

Current - Non Rep. Surge 50, 60Hz (Itsm):

600A @ 60Hz

Current - Hold (Ih) (Max):

-

Operating Temperature:

-40°C ~ 125°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Chassis Mount
