AUO M238HVN01.0
- Part No.:
- M238HVN01.0
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 23.8" VA LCM 1920×1080 250nits WLED LVDS 30pins 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
M238HVN01.0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 23.8"
- TNVAIPS:
- VA
- Resolution:
- 1920×1080
- CR:
- 1900/5/4 0:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 543×317.4×11.7 (H×V×D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 3000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 10/16 (Typ.)(Tr/Td) ms
- Best View on:
- Symmetry
- Work Mode:
- VA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 2.28±0.08Kgs
- Used for:
- Desktop Monitor
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
|
 |

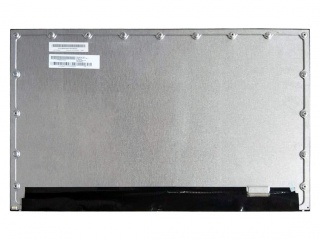

| Part Number | M238HVN01.0 | M238HVN01.1 | M238HVN01.5 | M238HVN01.3 | M238HVN01.00D 00C |
| Manufacturer | AUO | AUO | AUO | AUO | AUO |
| Panel Size | 23.8" | 23.8" | 23.8" | 23.8" | 23.8" |
| TNVAIPS | VA | VA | VA | VA | VA |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/5/4 0:01:00 | 1900/5/4 0:01:00 | 1900/5/4 0:01:00 | 1900/5/4 0:01:00 | 1900/5/4 0:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 543×317.4×11.7 (H×V×D) | 534.74(W)×313.26(H) ×12.1(D) mm | 534.74(W)×313.56(H) mm | 543(W)×317.4(H) ×11.7(D) mm | |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | |
| Brightness | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) | 3000:1 (Typ.) (TM) | 3000:1 (Typ.) (TM) | 3000:1 (Typ.) (TM) | 3000:1 (Typ.) (TM) |
| View Direction | |||||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 10/16 (Typ.)(Tr/Td) ms | 10/16 (Typ.)(Tr/Td) | 10/16 (Typ.)(Tr/Td) | 20 (Typ.)(G to G) | 10/16 (Typ.)(Tr/Td) |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | Symmetry |
| Work Mode | VA, Normally Black, Transmissive | VA, Normally Black, Transmissive | VA, Normally Black, Transmissive | VA, Normally Black, Transmissive | VA, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 73% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC |
| Mass | 2.28±0.08Kgs | 2.28±0.08Kgs | - | 1.50Kgs (Typ.) | 2.28±0.08Kgs |
| Used for | Desktop Monitor | Desktop Monitor | Desktop Monitor | Desktop Monitor | |
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz | 75Hz | 75Hz | 75Hz |
