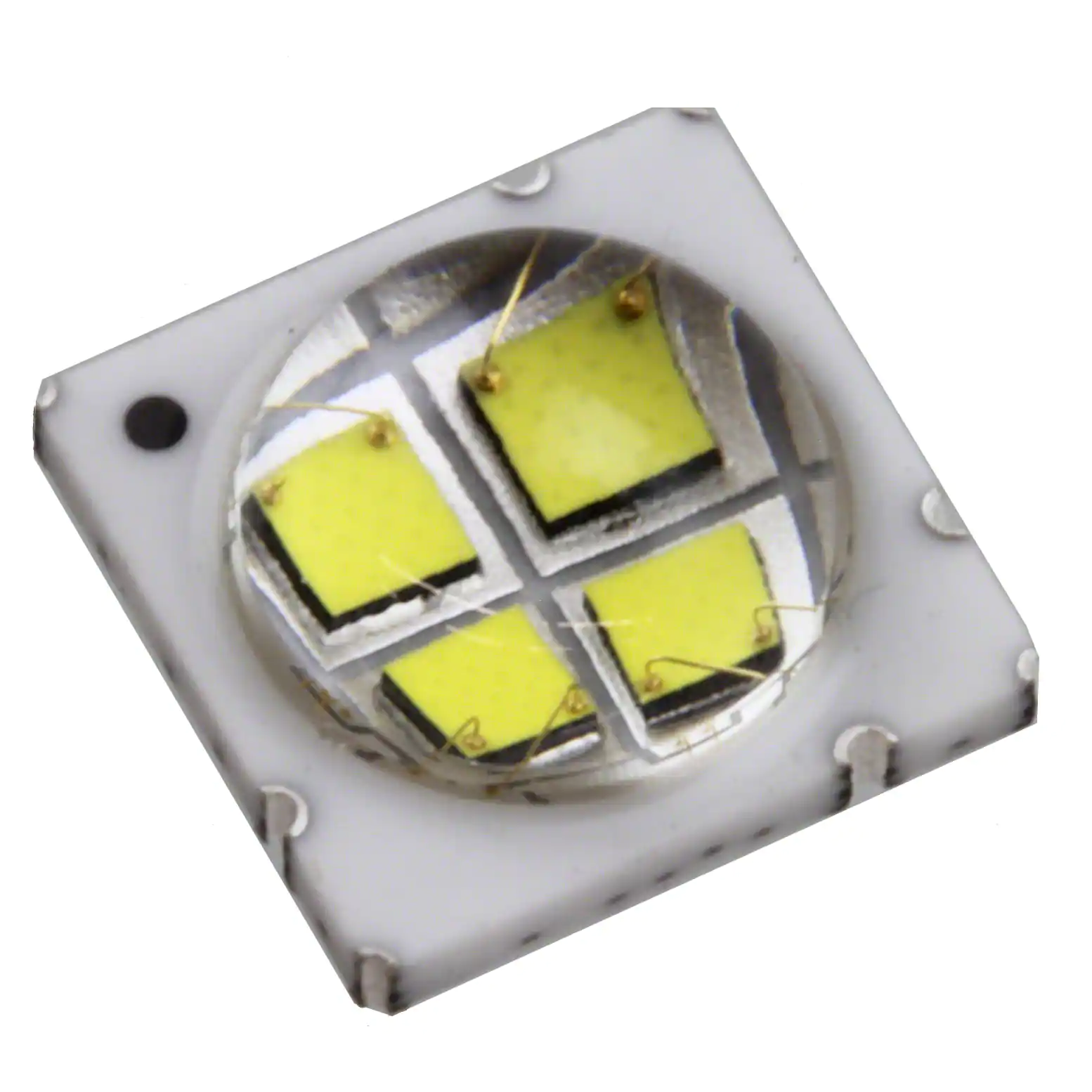

ams-OSRAM USA INC. LZ4-00CW08-0065

Name: LZ4-00CW08-0065
Brand: ams-OSRAM USA INC.
SKU: LZ4-00CW08-0065
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: LZ4-00CW08-0065

Manufacturer:: ams-OSRAM USA INC.

Category:: LED White Lighting

Package:: 2828 (7070 Metric)

Datasheet:: LZ4-00CW08-0065.pdf

Description:: LED LZ4 COOL WHITE 6500K SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

LZ4-00CW08-0065 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: ams-OSRAM USA INC.

Series:: LZ4

Package/Case:: 2828 (7070 Metric)

Packaging:: Tape & Reel (TR)

Product Status:: Active

Color:: White, Cool

CCT (K):: 6500K

Flux @ 85°C, Current - Test:: -

Flux @ 25°C, Current - Test:: 782lm (695lm ~ 868lm)

Current - Test:: 700mA

Voltage - Forward (Vf) (Typ):: 12.6V

Lumens/Watt @ Current - Test:: 89 lm/W

CRI (Color Rendering Index):: 75 (Typ)

Current - Max:: 1A

Viewing Angle:: 90°

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: SMD

Size / Dimension:: 0.276" L x 0.276" W (7.00mm x 7.00mm)

Height - Seated (Max):: 0.154" (3.90mm)

Part Number	LZ4-00CW08-0055	LZ4-00CW08-0065	LZ4-V4UVH0-0000	LZ4-00WW08-0030	LZ4-00CW08-0000
Manufacturer	ams-OSRAM USA INC.	ams-OSRAM USA INC.	ams-OSRAM USA INC.	ams-OSRAM USA INC.	ams-OSRAM USA INC.
Series	LZ4	LZ4	-	LZ4	LZ4
Package/Case	2828 (7070 Metric)	2828 (7070 Metric)	-	2828 (7070 Metric)	2828 (7070 Metric)
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tray	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Obsolete	Obsolete
Color	White, Cool	White, Cool	-	White, Warm	White, Cool
CCT (K)	5500K	6500K	-	3000K	4750K ~ 7040K
Flux @ 85°C, Current - Test	-	-	-	-	-
Flux @ 25°C, Current - Test	782lm (695lm ~ 868lm)	782lm (695lm ~ 868lm)	-	626lm (556lm ~ 695lm)	890lm (695lm ~ 1085lm)
Current - Test	700mA	700mA	-	700mA	700mA
Voltage - Forward (Vf) (Typ)	12.6V	12.6V	-	12.6V	12.6V
Lumens/Watt @ Current - Test	89 lm/W	89 lm/W	-	71 lm/W	101 lm/W
CRI (Color Rendering Index)	75 (Typ)	75 (Typ)	-	80 (Typ)	75 (Typ)
Current - Max	1A	1A	-	1A	1A
Viewing Angle	90°	90°	-	90°	90°
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	-	Surface Mount	Surface Mount
Supplier Device Package	SMD	SMD	-	SMD	SMD
Size / Dimension	0.276" L x 0.276" W (7.00mm x 7.00mm)	0.276" L x 0.276" W (7.00mm x 7.00mm)	-	0.276" L x 0.276" W (7.00mm x 7.00mm)	0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max)	0.154" (3.90mm)	0.154" (3.90mm)	-	0.154" (3.90mm)	0.154" (3.90mm)
