Lumileds LXZ1-4070
- Part No.:
- LXZ1-4070
- Manufacturer:
- Lumileds
- Category:
- LED White Lighting
- Package:
- 0705 (1713 Metric)
- Datasheet:
-
LXZ1-4070.pdf
- Description:
- LED LUXEON NEUT WHT 4000K SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LXZ1-4070 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Lumileds
- Series:
- LUXEON Z
- Package/Case:
- 0705 (1713 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- White, Neutral
- CCT (K):
- 4000K
- Flux @ 85°C, Current - Test:
- 134lm (Typ)
- Flux @ 25°C, Current - Test:
- -
- Current - Test:
- 500mA
- Voltage - Forward (Vf) (Typ):
- 2.8V
- Lumens/Watt @ Current - Test:
- 96 lm/W
- CRI (Color Rendering Index):
- 70
- Current - Max:
- 1A
- Viewing Angle:
- 120°
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SMD
- Size / Dimension:
- 0.067" L x 0.051" W (1.70mm x 1.30mm)
- Height - Seated (Max):
- 0.031" (0.79mm)
| Image |  |
 |
|
 |
|

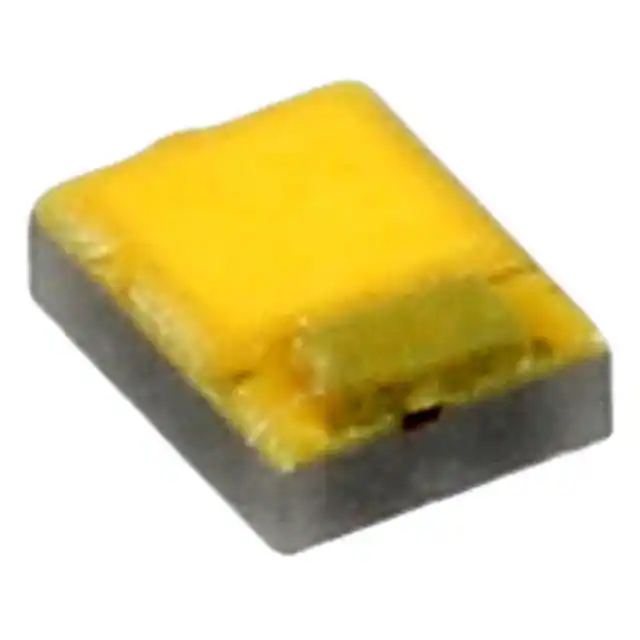

| Part Number | LXZ1-4070 | LXZ1-5770 | LXZ1-5070 | LXZ1-4080-5 | LXZ1-6565 |
| Manufacturer | Lumileds | Lumileds | Lumileds | Lumileds | Lumileds |
| Series | LUXEON Z | LUXEON Z | LUXEON Z | LUXEON Z | LUXEON Z |
| Package/Case | 0705 (1713 Metric) | 0705 (1713 Metric) | 0705 (1713 Metric) | 0705 (1713 Metric) | 0705 (1713 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Color | White, Neutral | White, Cool | White, Cool | White, Neutral | White, Cool |
| CCT (K) | 4000K | 5700K | 5000K | 4000K 5-Step MacAdam Ellipse | 6500K |
| Flux @ 85°C, Current - Test | 134lm (Typ) | 152lm (Typ) | 148lm (Typ) | 130lm (Typ) | 154lm (Typ) |
| Flux @ 25°C, Current - Test | - | - | - | - | - |
| Current - Test | 500mA | 500mA | 500mA | 500mA | 500mA |
| Voltage - Forward (Vf) (Typ) | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V |
| Lumens/Watt @ Current - Test | 96 lm/W | 109 lm/W | 106 lm/W | 93 lm/W | 110 lm/W |
| CRI (Color Rendering Index) | 70 | 70 | 70 | 80 | 65 |
| Current - Max | 1A | 1A | 1A | 1A | 1A |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SMD | SMD | SMD | SMD | SMD |
| Size / Dimension | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.067" L x 0.051" W (1.70mm x 1.30mm) |
| Height - Seated (Max) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
