ams-OSRAM USA INC. LW G6SP-EAFA-JKQL-1-140-R18-Z
- Part No.:
- LW G6SP-EAFA-JKQL-1-140-R18-Z
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- LED White Lighting
- Package:
- 6-SMD, J-Lead
- Datasheet:
-
LW G6SP-EAFA-JKQL-1-140-R18-Z.pdf
- Description:
- LED TOPLED COOL WHT 5600K 6PLCC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LW G6SP-EAFA-JKQL-1-140-R18-Z Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- Advanced Power TOPLED®
- Package/Case:
- 6-SMD, J-Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- White, Cool
- CCT (K):
- 5600K
- Flux @ 85°C, Current - Test:
- -
- Flux @ 25°C, Current - Test:
- 32lm (24lm ~ 38lm)
- Current - Test:
- 140mA
- Voltage - Forward (Vf) (Typ):
- 3.3V
- Lumens/Watt @ Current - Test:
- 69 lm/W
- CRI (Color Rendering Index):
- -
- Current - Max:
- 250mA
- Viewing Angle:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 6-PLCC
- Size / Dimension:
- 0.130" L x 0.118" W (3.30mm x 3.00mm)
- Height - Seated (Max):
- 0.083" (2.10mm)
| Image |  |
 |
 |
|

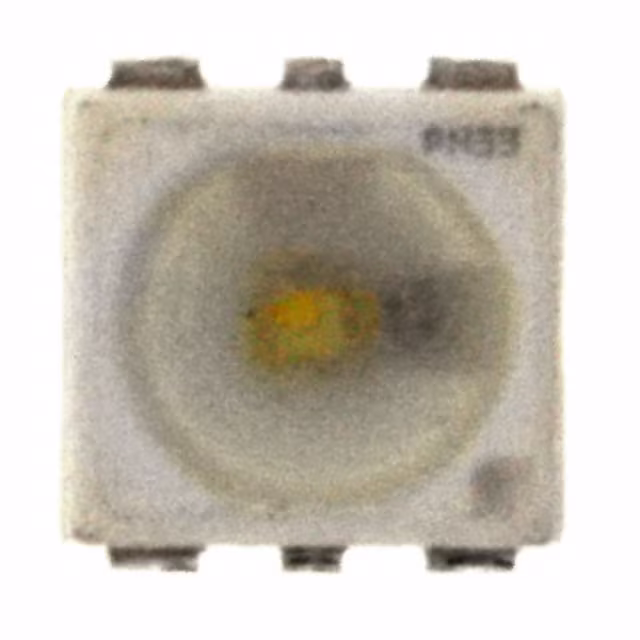

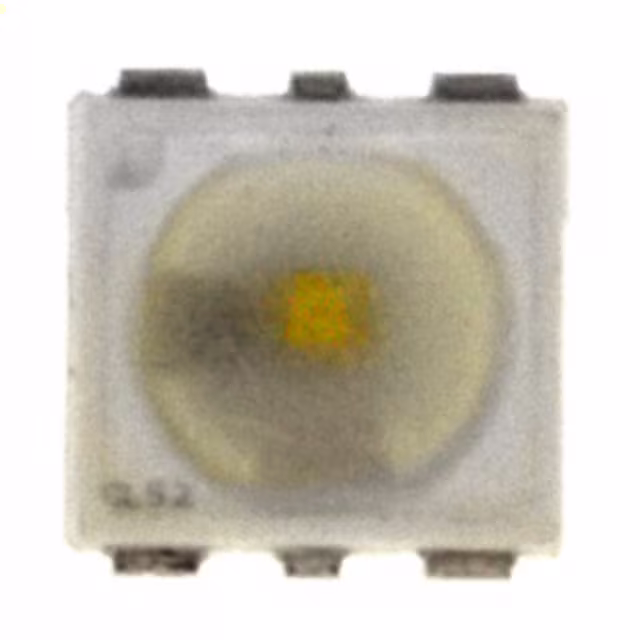

| Part Number | LW G6SP-EAFA-JKQL-1-140-R18-Z | LW G6SP-CADB-2K6L-1-Z | LW G6SP-CBEA-5K8L-1-Z | LW G6SP-DBEB-5H6J-0-140-R18-Z-HE |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | Advanced Power TOPLED® | Advanced Power TOPLED® | Advanced Power TOPLED® | Advanced Power TOPLED® |
| Package/Case | 6-SMD, J-Lead | 6-SMD, J-Lead | 6-SMD, J-Lead | 6-PLCC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Color | White, Cool | White, Cool | White, Cool | White |
| CCT (K) | 5600K | 5600K | 5600K | - |
| Flux @ 85°C, Current - Test | - | - | - | - |
| Flux @ 25°C, Current - Test | 32lm (24lm ~ 38lm) | 19lm (Typ) | 24lm (Typ) | - |
| Current - Test | 140mA | 140mA | 140mA | 140mA |
| Voltage - Forward (Vf) (Typ) | 3.3V | 3.6V | 3.3V | 3.3V |
| Lumens/Watt @ Current - Test | 69 lm/W | 38 lm/W | 52 lm/W | - |
| CRI (Color Rendering Index) | - | 80 | 80 | 80 (Typ) |
| Current - Max | 250mA | 250mA | 250mA | 250mA |
| Viewing Angle | - | 120° | 120° | 120° |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-PLCC | 6-PLCC | 6-PLCC | 6-PLCC |
| Size / Dimension | 0.130" L x 0.118" W (3.30mm x 3.00mm) | 0.130" L x 0.118" W (3.30mm x 3.00mm) | 0.130" L x 0.118" W (3.30mm x 3.00mm) | 0.130" L x 0.118" W (3.30mm x 3.00mm) |
| Height - Seated (Max) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) |
