Lite-On Inc. LTW-5630AZL40
- Part No.:
- LTW-5630AZL40
- Manufacturer:
- Lite-On Inc.
- Category:
- LED White Lighting
- Package:
- 4-SMD, Flat Lead Exposed Pad
- Datasheet:
-
LTW-5630AZL40.pdf
- Description:
- LED AZL NEUTRAL WHT 4000K 5630
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LTW-5630AZL40 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Lite-On Inc.
- Series:
- AZL
- Package/Case:
- 4-SMD, Flat Lead Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- White, Neutral
- CCT (K):
- 4000K
- Flux @ 85°C, Current - Test:
- -
- Flux @ 25°C, Current - Test:
- 53lm (44lm ~ 62lm)
- Current - Test:
- 120mA
- Voltage - Forward (Vf) (Typ):
- 3.13V
- Lumens/Watt @ Current - Test:
- 141 lm/W
- CRI (Color Rendering Index):
- 80
- Current - Max:
- 200mA
- Viewing Angle:
- 120°
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 5630
- Size / Dimension:
- 0.209" L x 0.118" W (5.30mm x 3.00mm)
- Height - Seated (Max):
- 0.043" (1.10mm)
| Image |  |
|
 |
|
 |

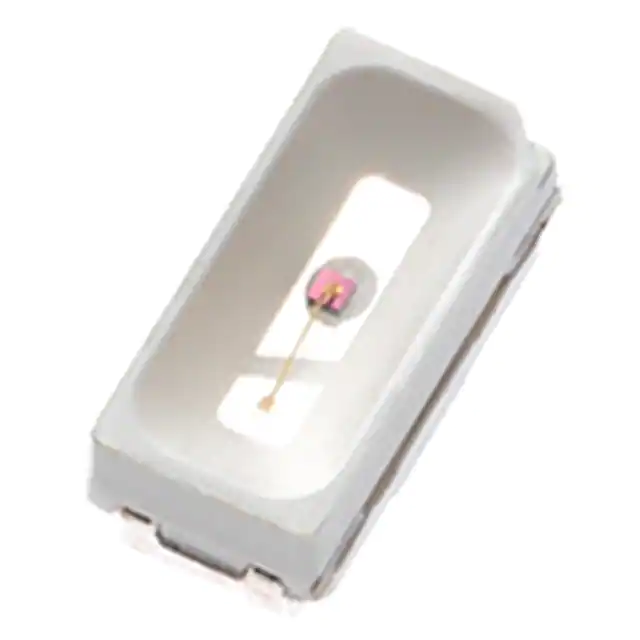

| Part Number | LTW-5630AZL40 | LTW-5630AZL50 | LTW-M140SZS40 | LTW-Z5630SZL65 | LTW-K140SZR40 |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Series | AZL | AZL | - | - | SZR |
| Package/Case | 4-SMD, Flat Lead Exposed Pad | 4-SMD, Flat Lead Exposed Pad | 2-SMD, Flat Leads | 4-SMD, Flat Lead Exposed Pad | 2-SMD, Flat Leads |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Color | White, Neutral | White, Cool | White, Neutral | White, Cool | White, Neutral |
| CCT (K) | 4000K | 5000K | 3500K ~ 4500K | 6500K | 4000K |
| Flux @ 85°C, Current - Test | - | - | - | - | - |
| Flux @ 25°C, Current - Test | 53lm (44lm ~ 62lm) | 55lm (46lm ~ 64lm) | 7lm (5lm ~ 8lm) | 41lm (33lm ~ 50lm) | 22lm (18lm ~ 26lm) |
| Current - Test | 120mA | 120mA | 20mA | 120mA | 60mA |
| Voltage - Forward (Vf) (Typ) | 3.13V | 3.13V | 3.2V | 3.2V | 3.2V |
| Lumens/Watt @ Current - Test | 141 lm/W | 146 lm/W | 109 lm/W | 107 lm/W | 115 lm/W |
| CRI (Color Rendering Index) | 80 | 80 | 77 | 80 | 80 |
| Current - Max | 200mA | 200mA | 30mA | 150mA | 80mA |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 5630 | 5630 | - | 5630 | - |
| Size / Dimension | 0.209" L x 0.118" W (5.30mm x 3.00mm) | 0.209" L x 0.118" W (5.30mm x 3.00mm) | 0.106" L x 0.055" W (2.70mm x 1.40mm) | 0.209" L x 0.118" W (5.30mm x 3.00mm) | 0.106" L x 0.055" W (2.70mm x 1.40mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.035" (0.90mm) | 0.043" (1.10mm) | 0.035" (0.90mm) |
