Analog Devices Inc. LTC4097EDDB
- Part No.:
- LTC4097EDDB
- Manufacturer:
- Analog Devices Inc.
- Category:
- Battery Chargers
- Package:
- 12-WFDFN Exposed Pad
- Datasheet:
-
LTC4097EDDB.pdf
- Description:
- IC BATT CHG LI-ION 1CELL 12DFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LTC4097EDDB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Package/Case:
- 12-WFDFN Exposed Pad
- Packaging:
- Tube
- Product Status:
- Obsolete
- Battery Chemistry:
- Lithium Ion/Polymer
- Number of Cells:
- 1
- Current - Charging:
- Constant - Programmable
- Programmable Features:
- Current
- Fault Protection:
- -
- Charge Current - Max:
- 1.2A
- Battery Pack Voltage:
- 4.2V
- Voltage - Supply (Max):
- 5.5V
- Interface:
- USB
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 12-DFN (3x2)

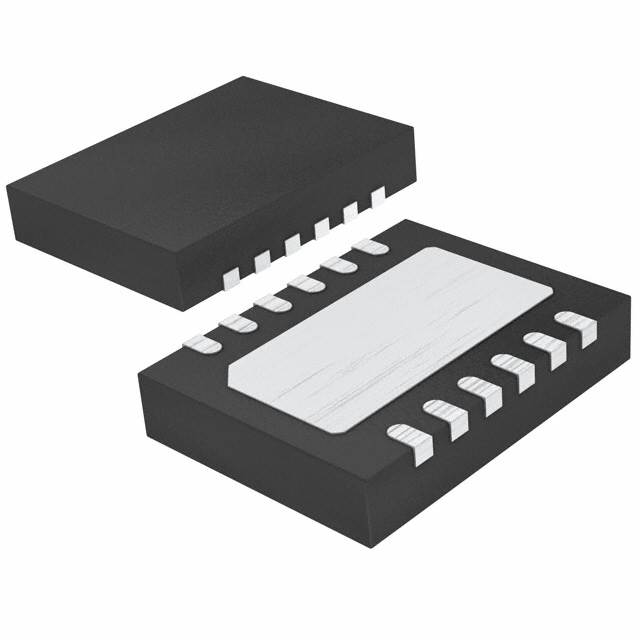

| Image |  |
|
 |
| Part Number | LTC4097EDDB#TRMPBF | LTC4097EDDB#TRPBF | LTC4097EDDB |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - |
| Package/Case | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
| Product Status | Active | Active | Obsolete |
| Battery Chemistry | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer |
| Number of Cells | 1 | 1 | 1 |
| Current - Charging | Constant - Programmable | Constant - Programmable | Constant - Programmable |
| Programmable Features | Current | Current | Current |
| Fault Protection | - | - | - |
| Charge Current - Max | 1.2A | 1.2A | 1.2A |
| Battery Pack Voltage | 4.2V | 4.2V | 4.2V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Interface | USB | USB | USB |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 12-DFN (3x2) | 12-DFN (3x2) | 12-DFN (3x2) |
