Texas Instruments LMH6715MA/NOPB
- Part No.:
- LMH6715MA/NOPB
- Manufacturer:
- Texas Instruments
- Category:
- Video Amps and Modules
- Package:
- 8-SOIC (0.154", 3.90mm Width)
- Datasheet:
-
LMH6715MA/NOPB.pdf
- Description:
- IC AMP CURRENT FEEDBACK 8SOIC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LMH6715MA/NOPB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width)
- Series:
- VIP10™
- Packaging:
- Tube
- Product Status:
- Active
- Applications:
- Current Feedback
- Output Type:
- -
- Number of Circuits:
- 2
- -3db Bandwidth:
- 400 MHz
- Slew Rate:
- 1300V/µs
- Current - Supply:
- 5.8 mA
- Current - Output / Channel:
- 70 mA
- Voltage - Supply, Single/Dual (±):
- 10V ~ 12V, ±5V ~ 6V
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 8-SOIC

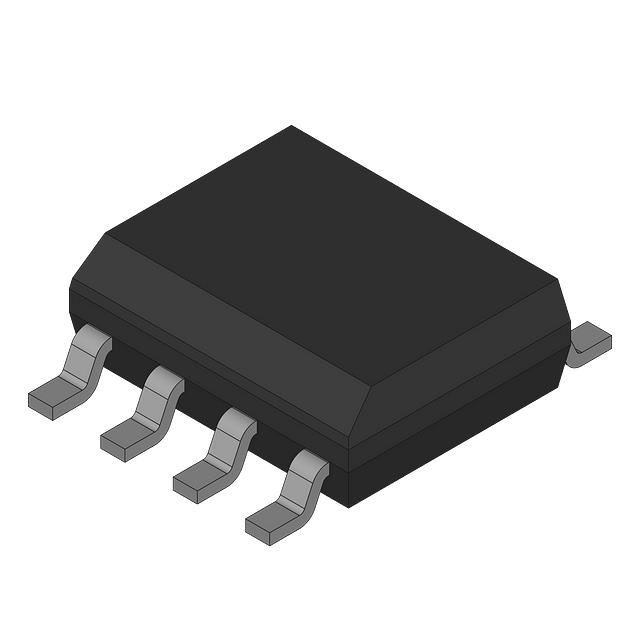

| Image |  |
|
|
 |
| Part Number | LMH6715MAX/NOPB | LMH6715MA/NOPB | LMH6715MA | LMH6715MAX |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Series | VIP10™ | VIP10™ | VIP10™ | VIP10™ |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR) |
| Product Status | Active | Active | Not For New Designs | Obsolete |
| Applications | Current Feedback | Current Feedback | Current Feedback | Current Feedback |
| Output Type | - | - | - | - |
| Number of Circuits | 2 | 2 | 2 | 2 |
| -3db Bandwidth | 400 MHz | 400 MHz | 400 MHz | 400 MHz |
| Slew Rate | 1300V/µs | 1300V/µs | 1300V/µs | 1300V/µs |
| Current - Supply | 5.8 mA | 5.8 mA | 5.8 mA | 5.8 mA |
| Current - Output / Channel | 70 mA | 70 mA | 70 mA | 70 mA |
| Voltage - Supply, Single/Dual (±) | 10V ~ 12V, ±5V ~ 6V | 10V ~ 12V, ±5V ~ 6V | 10V ~ 12V, ±5V ~ 6V | 10V ~ 12V, ±5V ~ 6V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
